Dynamic Shear Testing Device

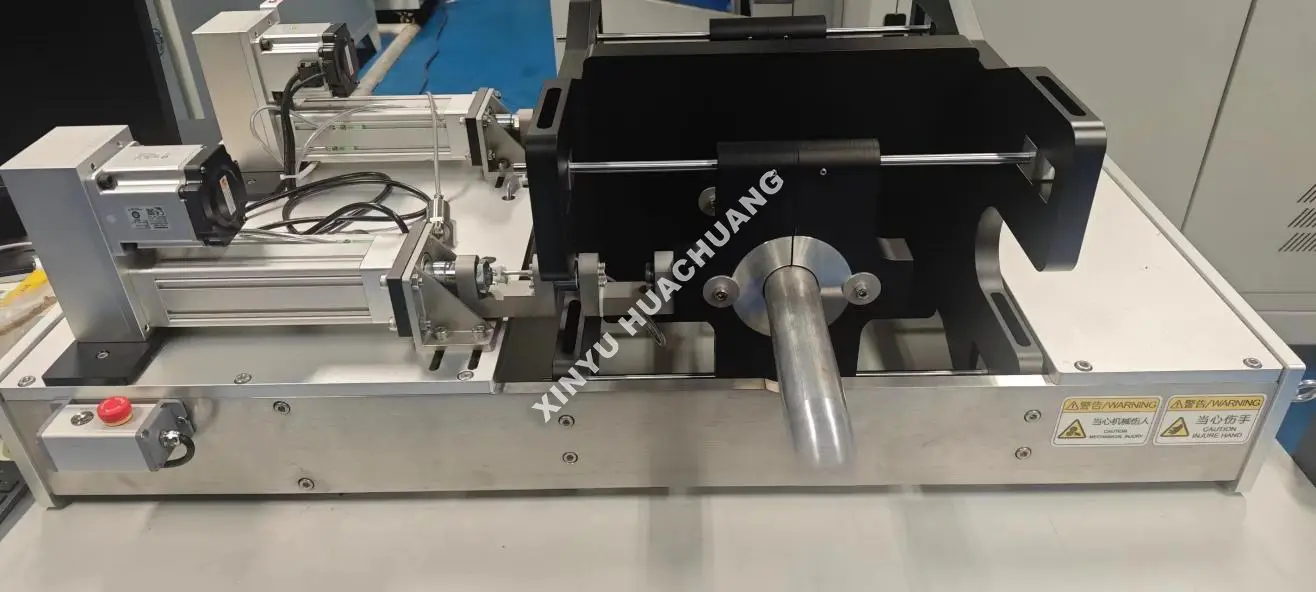

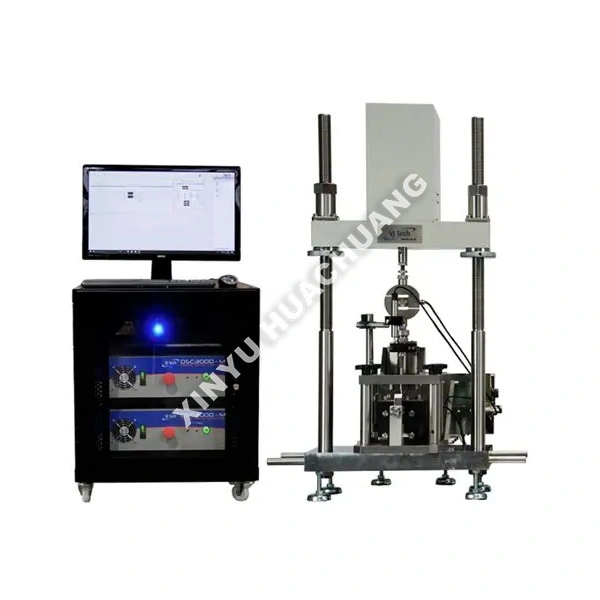

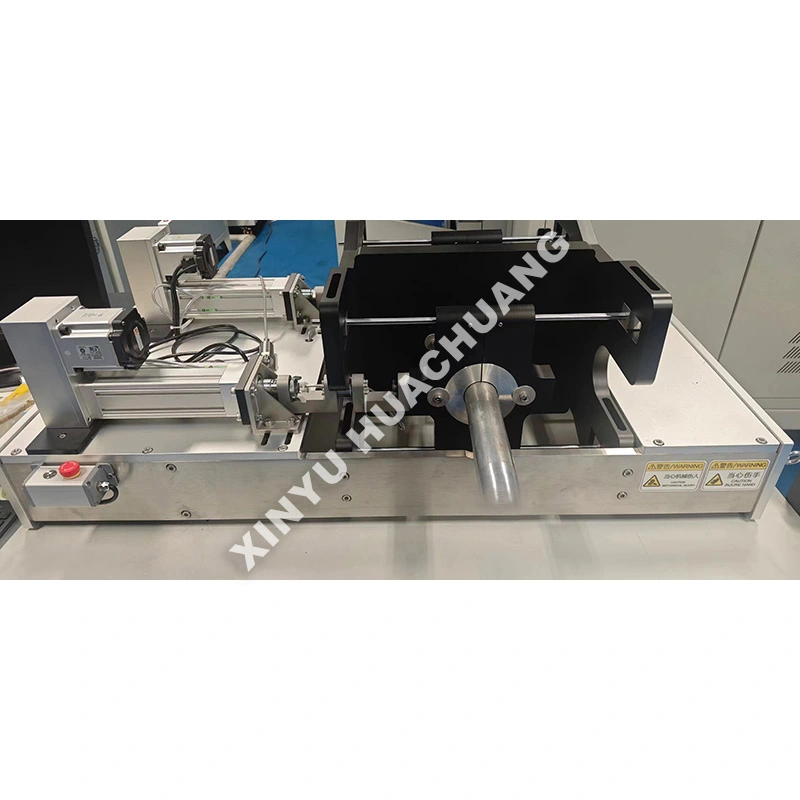

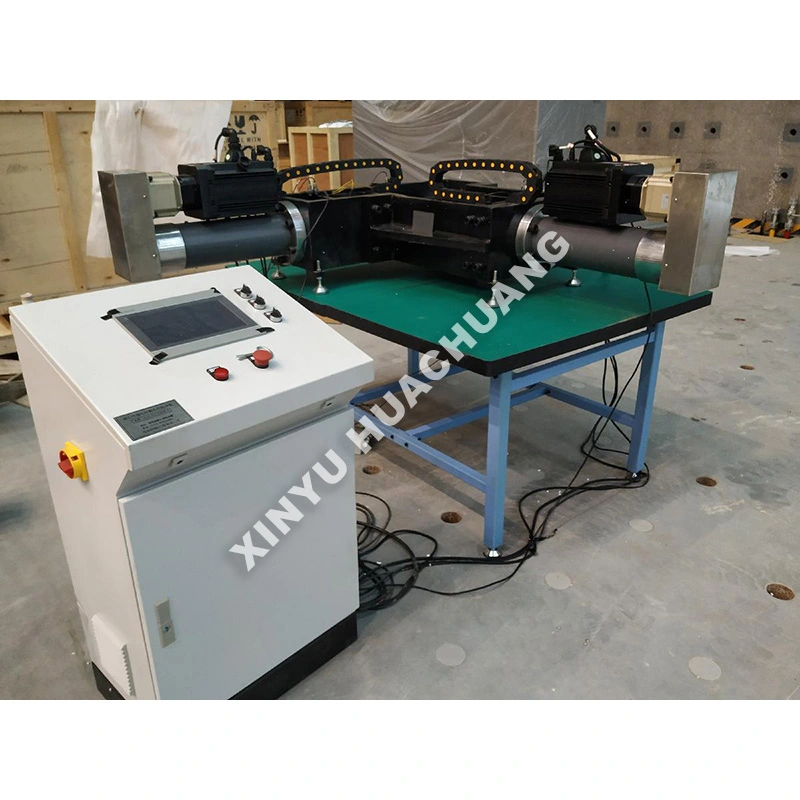

The XINYU HUACHUANG Dynamic Shear Testing Device is a highly accurate, versatile testing instrument specifically engineered to evaluate the mechanical properties of materials and structural components under dynamic and static shear loads. Designed to simulate real-world shearing forces, this Dynamic Shear Testing Device precisely measures shear force, displacement, and deformation. Equipped with intelligent PLC/PC automation and multi-level safety interlocks, it ensures safe, reliable operation while delivering highly reproducible data for R&D, quality control, and material certification.

What is a Dynamic Shear Testing Device?

A Dynamic Shear Testing Device is a specialized mechanical testing apparatus used to determine how materials or structural components respond to shear forces. By applying a controlled shear load to a specimen, the device can measure both the maximum shear strength and the dynamic shear behavior under varying frequencies and amplitudes. This equipment is critical for calculating key mechanical parameters such as shear modulus, dynamic viscosity, and ultimate shear strength. The XINYU HUACHUANG Dynamic Shear Testing Device is widely utilized in metallurgy, automotive, aerospace, and construction industries to validate the structural integrity of metals, polymers, composites, and adhesives.

Where Does It Shine?

● High-Precision Measurement: Features premium load cells and high-resolution displacement sensors to ensure accurate capture of shear force and deformation data with minimal error.

● Versatile Control Modes: Supports multiple testing modes including dynamic oscillatory shear, static shear, and cyclic fatigue, accommodating both linear viscoelastic and non-linear strength tests.

● Intelligent Data Acquisition: Integrated PC software automatically records real-time curves (Force-Displacement, Stress-Strain), calculates key parameters, and generates comprehensive test reports.

● Robust & Safe Construction: Built with a rigid cast frame and multi-level safety interlocks (overload protection, emergency stop, displacement limits) to ensure operator safety and equipment longevity.

● Customizable Fixturing: Offers a wide range of specialized shear fixtures and grips to securely hold various specimen geometries, from thin films to large structural components.

Technical Specifications

How to Choose Right?

● Define Force Capacity & Specimen Size: Accurately determine the expected maximum shear force and specimen dimensions. This is critical for selecting the appropriate load cell and fixture type for the Dynamic Shear Testing Device.

● Assess Test Type Requirements: Determine if you need static shear strength testing, dynamic viscoelastic characterization, or cyclic fatigue evaluation. This dictates the required control modes and software capabilities.

● Material Compatibility: Consider the material properties (e.g., metals, polymers, biological tissues) to select the appropriate gripping method and fixture design to prevent slippage or premature failure.

● Standards Compliance: Ensure the selected Dynamic Shear Testing Device can accommodate the specific testing standards you need to follow (e.g., ASTM, ISO, GB).

Quality Inspection Process

● Material Verification: Strict inspection of incoming structural steel, load cells, and sensors to ensure they meet specified metallurgical and performance standards.

● Precision Machining: CNC machining of the main frame and shear fixtures to guarantee perfect alignment and structural integrity under high loads.

● System Calibration: Comprehensive calibration of the load cells, displacement sensors, and control system using certified reference standards to ensure measurement accuracy.

● Safety Interlock Testing: Rigorous testing of all safety features, including overload protection, emergency stop, and displacement limits, to verify reliable operation.

● Functional Run: A complete dry-run and actual specimen testing to verify smooth operation, accurate data acquisition, and proper functioning of the software before packaging.

Support that keeps you confident

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: What is the difference between static shear testing and dynamic shear testing?

A: Static shear testing applies a steadily increasing load until the specimen fails, measuring only the ultimate shear strength. Dynamic shear testing goes further by applying shear loads at varying frequencies and amplitudes, capturing the material's time-dependent and rate-sensitive behavior—information critical for components subjected to vibration, impact, or cyclic loading in service.

Q2: Which key mechanical parameters does the Dynamic Shear Testing Device calculate?

A: The device measures shear modulus, dynamic viscosity, and ultimate shear strength under both static and dynamic conditions. By sweeping through different frequencies and amplitudes, it also generates master curves that reveal how the material's shear response changes with loading rate and temperature.

Q3: Why is dynamic viscosity measurement important for polymers and adhesives?

A: Polymers and adhesives exhibit viscoelastic behavior—their stiffness and damping characteristics change with loading frequency. Dynamic viscosity data reveals how these materials dissipate energy under cyclic shear, which is essential for predicting long-term performance in applications such as structural bonding, vibration damping, and sealant design.

Q4: Which specimen configurations can the device accommodate?

A: The device supports standard lap-shear specimens, butt-joint specimens, and custom geometries for metals, polymers, composites, and adhesives. Fixtures can be adapted for thin films, bulk samples, and bonded assemblies, making it versatile across different material types and testing standards.

Q5: How does this device support quality control in the automotive and aerospace industries?

A: Automotive and aerospace components—such as riveted joints, adhesive bonds, and composite laminates—experience dynamic shear loads during operation. The device provides the frequency-dependent shear data needed to validate that these joints meet fatigue life and structural integrity specifications before deployment.
