Small-Diameter Column Distributor

The XINYU HUACHUANG Small-Diameter Column Distributor is a highly precise liquid distribution system specifically engineered for laboratory and pilot-scale packed towers. Designed to overcome the unique challenges of small cross-sections, this Small-Diameter Column Distributor ensures optimal vapor-liquid contact and prevents wall-flow. Its compact, high-precision design makes it the ideal choice for maximizing separation efficiency in R&D and pilot testing environments.

What is a Small-Diameter Column Distributor?

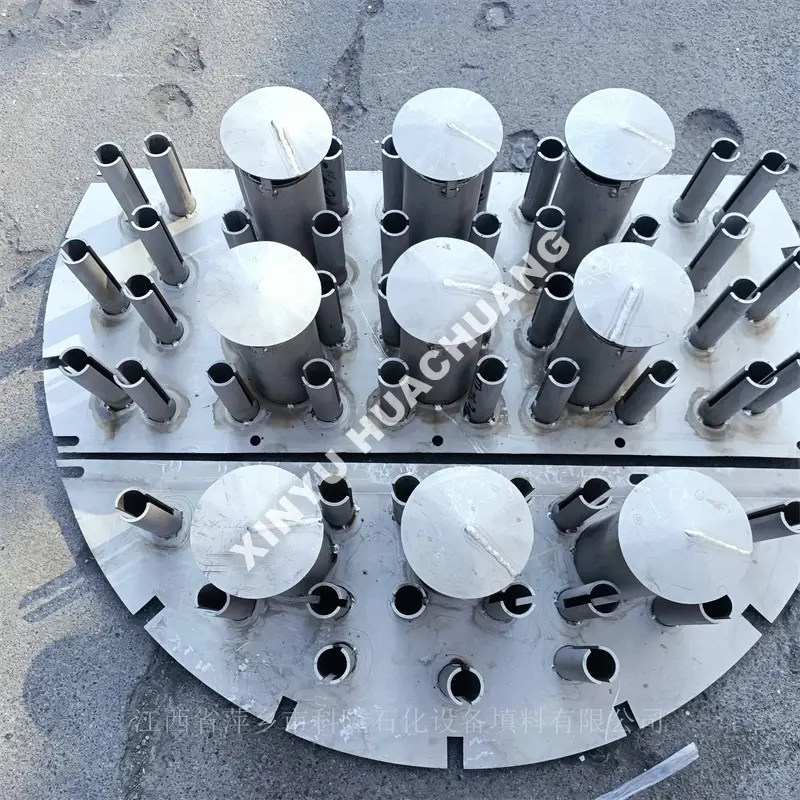

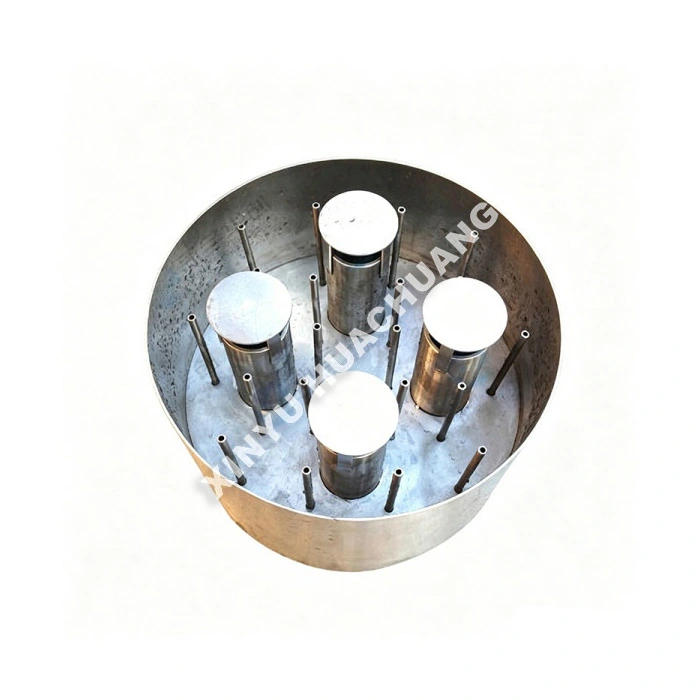

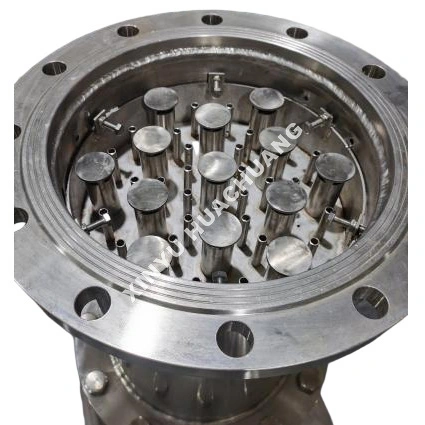

A Small-Diameter Column Distributor is a specialized tower internal component designed for columns typically under 300mm in diameter. Due to the limited space, traditional distributors often fail to provide adequate coverage. This Small-Diameter Column Distributor utilizes advanced hydraulic designs, such as multi-point orifice plates or micro-troughs, to guarantee uniform liquid spreading. It is essential for high-purity fractional distillation, gas absorption, and solvent recovery processes in academic and industrial pilot plants.

What are the distinctive advantages?

● Precision Liquid Distribution: Custom-engineered orifice patterns ensure excellent uniformity even in tight spaces, maximizing theoretical plate efficiency.

● Anti-Wall-Flow Design: Incorporates specialized peripheral baffles or redistribution rings to prevent liquid from migrating to the column walls.

● Compact & Robust Construction: Space-saving design manufactured from premium SS316L or glass, ensuring durability and corrosion resistance.

● High Turndown Ratio: Maintains stable and uniform distribution across a wide range of low liquid flow rates typical in lab settings.

● Easy Installation: Modular, precision-machined components allow for quick, level, and secure installation in small-diameter towers.

Technical Specifications

Where is it applicable?

● Academic & R&D Laboratories: Fundamental kinetic studies, separation process visualization, and catalyst testing.

● Pilot-Scale Plants: Bridging the gap between benchtop R&D and industrial scale-up for fine chemicals and pharmaceuticals.

● Essential Oils & Natural Extracts: Gentle, high-purity separation of heat-sensitive terpenes and fragrances.

● Specialty Solvents: Continuous recovery and ultra-high purification of high-value organic solvents.

● Food & Beverage: Concentration of natural flavors and extraction of bioactive compounds.
