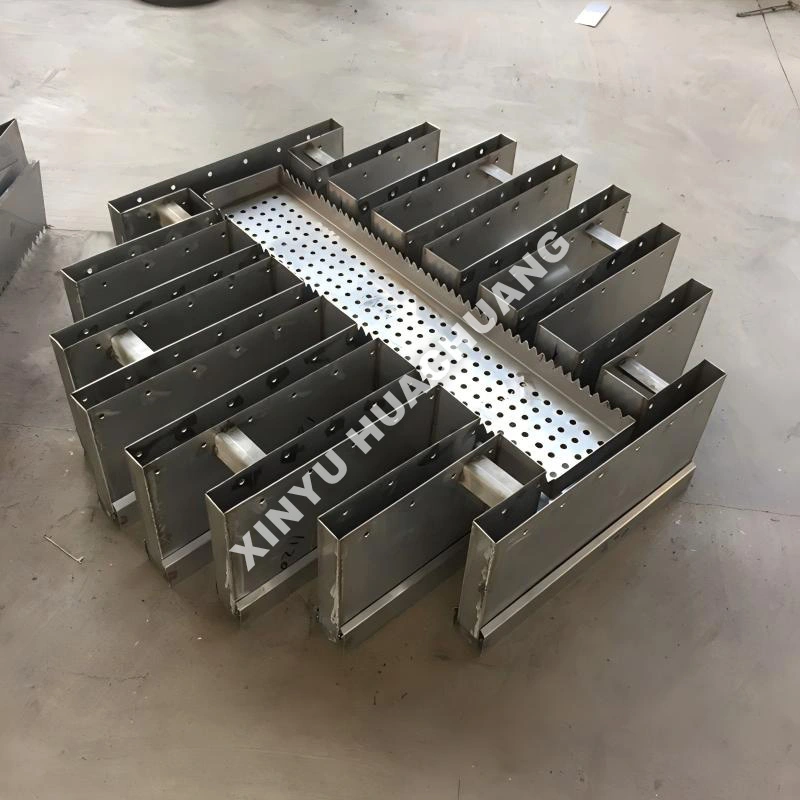

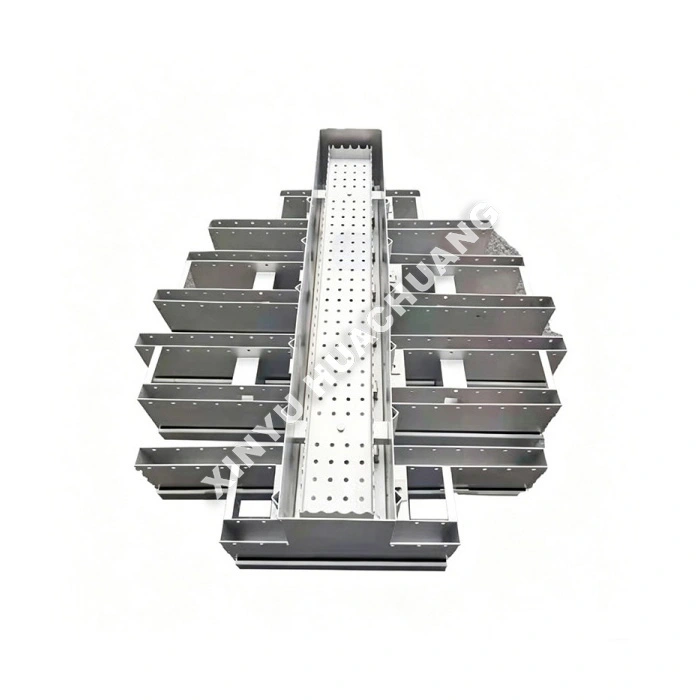

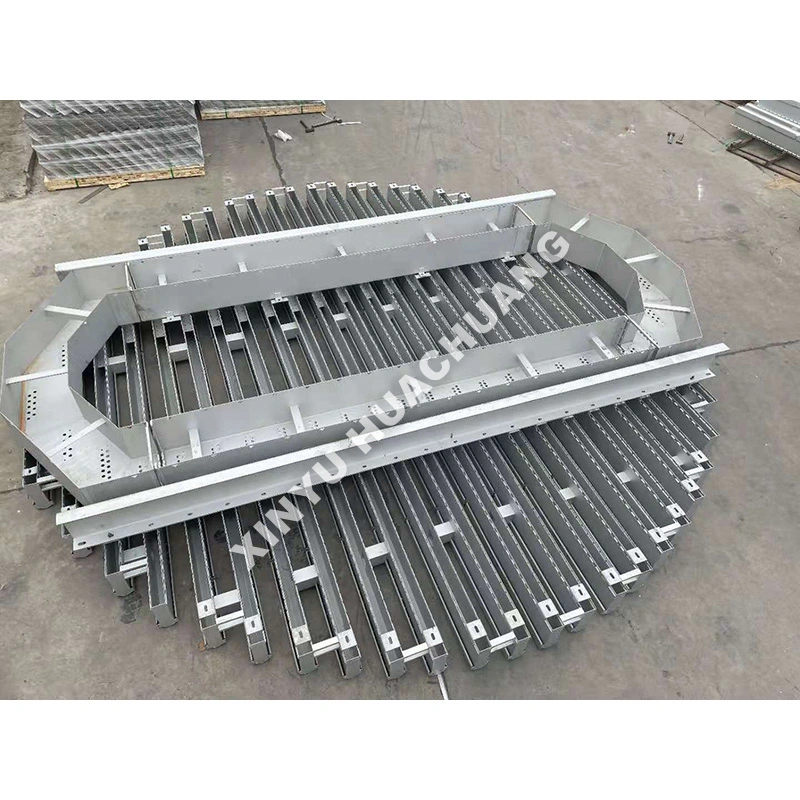

Trough Type Liquid Distributor

The XINYU HUACHUANG Trough Type Liquid Distributor is a highly reliable liquid distribution system specifically engineered for large-diameter packed towers. Designed to ensure optimal vapor-liquid contact, this liquid distributor guarantees uniform liquid distribution even under fluctuating flow rates. Its robust, open-channel design makes it the ideal choice for maximizing separation efficiency and preventing wall-flow in critical distillation and absorption processes.

What is a Trough Type Liquid Distributor?

Trough Type Liquid Distributor is a specialized tower internal component that utilizes a series of parallel, open channels (troughs) to evenly spread liquid across the packing bed. Unlike pressurized pipe distributors, it relies on gravity and precise weir or orifice designs to maintain distribution uniformity. This liquid distributor is exceptionally tolerant to impurities and fouling, making it highly suitable for high-purity fractional distillation, gas absorption, and solvent recovery processes where feedstock cleanliness varies.

Technical Specifications

What Can It Do for You?

● Superior Anti-Fouling Performance: Open trough design with large discharge orifices prevents clogging from particulates and polymerization.

● Wide Operational Flexibility: Maintains excellent distribution uniformity across a broad turndown ratio, accommodating flow rate fluctuations.

● Low Pressure Drop: Open-channel design offers minimal resistance to rising vapor, maximizing column capacity.

● Easy Installation & Maintenance: Modular design allows for quick assembly and easy access for cleaning or inspection.

Usage Precautions

● Levelness Control: Ensure the distributor is installed with strict horizontal tolerance (typically ±2mm) to prevent liquid maldistribution.

● Feedstock Pre-Filtration: Always filter incoming liquid to remove large debris that could overwhelm the trough capacity.

● Gradual Flow Increase: Ramp up liquid flow gradually during startup to allow the trough system to stabilize.

Common Mistakes vs. Correct Methods

● Mistake: Ignoring installation levelness. Correct Method: Always use precision leveling instruments during installation to ensure uniform liquid head across all troughs.

● Mistake: Overloading beyond design capacity. Correct Method: Monitor liquid load and adjust feed rate to stay within the Trough Type Liquid Distributor's specified operating range to prevent flooding.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions

Q1: How does a Trough Type Liquid Distributor differ from a pressurized pipe distributor?

A: A Trough Type Liquid Distributor relies on gravity and precise weir or orifice designs to spread liquid across the packing bed, while a pressurized pipe distributor uses pump pressure to force liquid through spray nozzles. The gravity-based approach is more tolerant to flow variations, requires no additional pumping energy, and is far less susceptible to clogging from impurities.

Q2: Why is fouling tolerance important for a liquid distributor?

A: In real-world processes, feedstocks often contain trace particulates, polymerization products, or crystallized salts that can block small orifices. The Liquid Distributor's open-channel design is exceptionally tolerant to these impurities, maintaining distribution uniformity even when the feed is not perfectly clean—reducing maintenance frequency and unplanned shutdowns.

Q3: Which processes benefit most from the fouling tolerance of a Liquid Distributor?

A: High-purity fractional distillation, gas absorption, and solvent recovery processes where feedstock cleanliness varies benefit the most. These applications often involve recycled solvents or mixed waste streams that contain impurities, making the Liquid Distributor's tolerance to fouling a critical advantage over more sensitive designs.

Q4: Can the Trough Type Liquid Distributor handle varying liquid flow rates during operation?

A: Yes. The gravity-driven weir and orifice design maintains distribution uniformity across a broad operating range. Whether the liquid load increases during peak reflux or decreases during light product draw, the trough geometry continues to spread liquid evenly without the need for mechanical adjustments.

Q5: What maintenance does a Liquid Distributor typically require?

A: Thanks to its open-channel design and fouling tolerance, a Liquid Distributor requires minimal maintenance. Periodic visual inspection during scheduled shutdowns is usually sufficient. If deposits do accumulate, the open troughs can be easily flushed or mechanically cleaned without specialized tools, unlike pressurized nozzle systems that require complete disassembly
