When reliable operation of laboratory and pilot distillation columns is required, Column Auxiliary Internals from XINYU HUACHUANG provide dependable support for stable liquid collection, reflux control and packing bed support. These internals are selected to help reduce operating fluctuations and to keep separation tasks running more consistently, especially where uniform liquid distribution and stable column behavior are important.
Column auxiliary internals are supporting components used together with distillation columns and packing beds. They do not always perform separation directly, but they help maintain stable liquid flow, reliable reflux operation and proper packing support.
Common types include liquid collection trays for collecting and guiding liquid, reflux ratio controllers for managing reflux and distillate flow, and column packing support devices for holding the packing bed while allowing vapor and liquid to pass through.

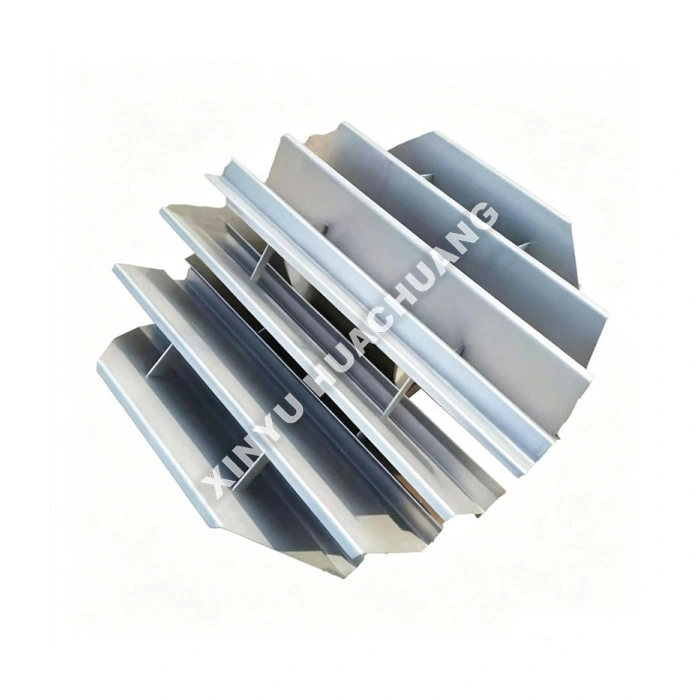

Liquid collection trays are usually installed at specific positions inside the column to collect liquid from the packing bed or column wall. They help guide liquid to the next stage, reduce uneven accumulation and improve internal flow stability.

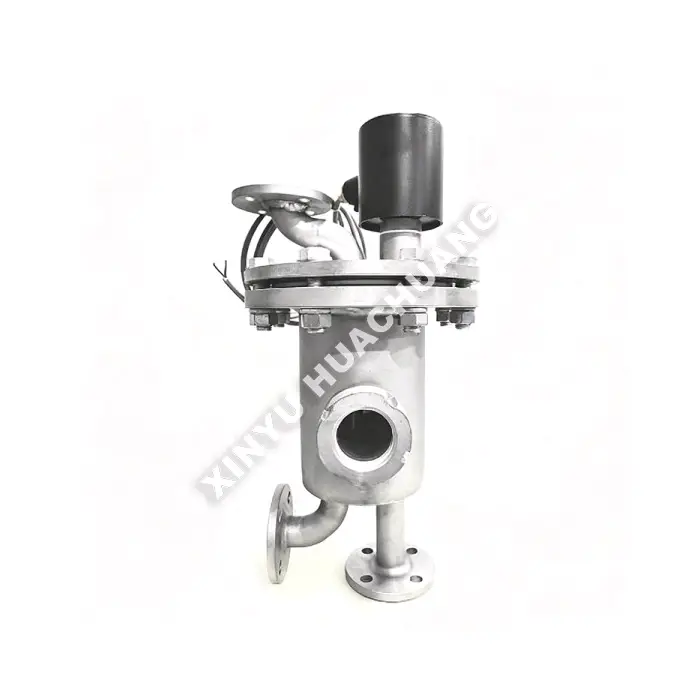

Reflux ratio controllers are used to adjust the proportion of reflux and distillate. They are important for batch distillation, fractional distillation and pilot-scale tests where reflux ratio affects product purity and separation efficiency.

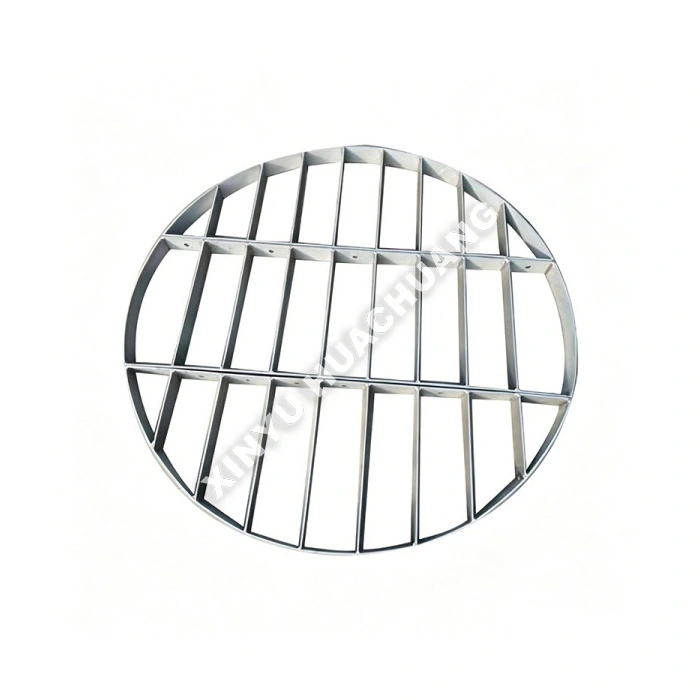

Column packing support devices are installed below the packing bed to carry the packing weight and maintain bed structure. A suitable support structure should provide sufficient open area for vapor-liquid flow while preventing packing loss or bed collapse.
Reliable auxiliary internals should match the column diameter, packing type, liquid load, operating temperature and pressure. Material selection is also important, especially for corrosive solvents, high-temperature operation or high-purity applications.
As an original manufacturer of distillation column internals and pilot equipment, XINYU HUACHUANG can align these components with column design, packing selection and process requirements. Direct cooperation with the manufacturer brings more accurate size matching, clearer technical confirmation, and timely support during installation and commissioning. In addition to Column Auxiliary Internals, we also supply Column Packings, Batch Distillation Units, Continuous Distillation Units and other experimental and pilot systems. If your column requires improved liquid collection, stable reflux control or reliable packing support, we can recommend suitable components based on your process conditions.
The procurement process usually starts with confirming column diameter, packing type, operating conditions and component function. After technical details are clarified, we provide a configuration proposal and quotation.
Once the proposal and commercial terms are confirmed, production or preparation begins. Before delivery, dimensions, material condition, connection points and accessory completeness are checked. For export orders, packaging, shipping and documentation can be arranged according to contract terms.
A liquid collection tray collects liquid from the packing bed or column wall and guides it to the next section. It helps reduce uneven liquid accumulation and supports more stable column operation.
A reflux ratio controller helps maintain a stable reflux-to-distillate ratio. This is important for controlling product purity, improving separation efficiency and achieving repeatable pilot-scale results.
Packing support devices hold the packing bed in place and prevent packing from falling into the lower section. A good support structure should maintain bed stability while allowing smooth vapor and liquid flow.
Yes. Liquid collection trays, reflux ratio controllers and packing support devices can be discussed according to existing column size, material requirements and process conditions. As the original manufacturer, we can support customers with compatible configuration and technical confirmation.
