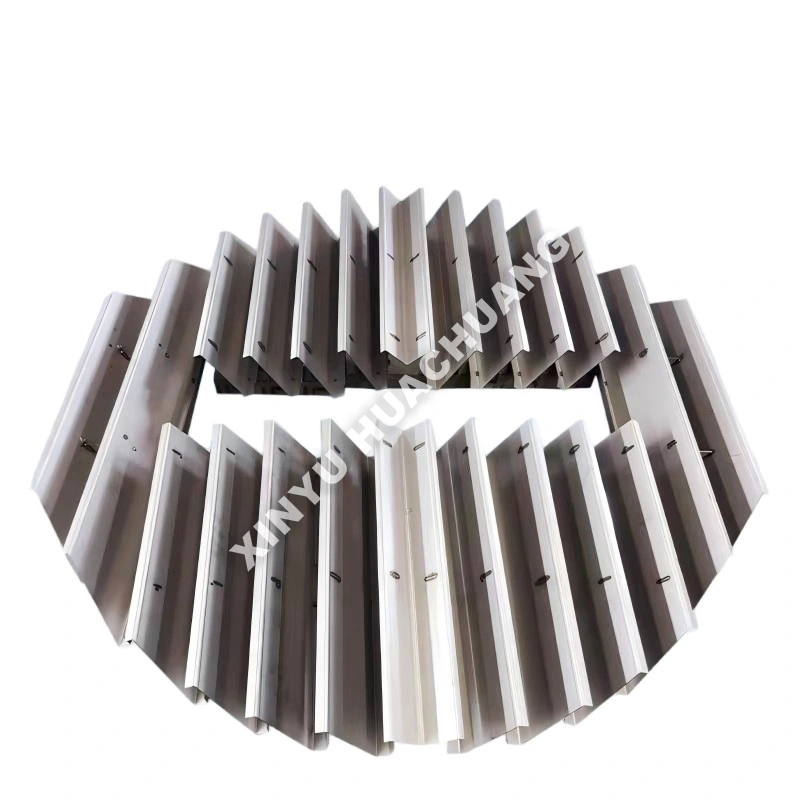

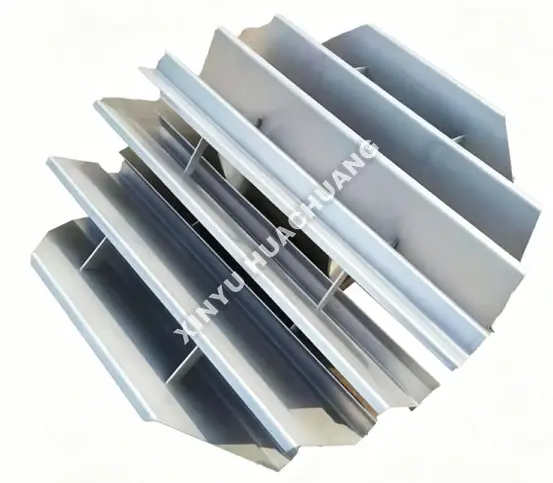

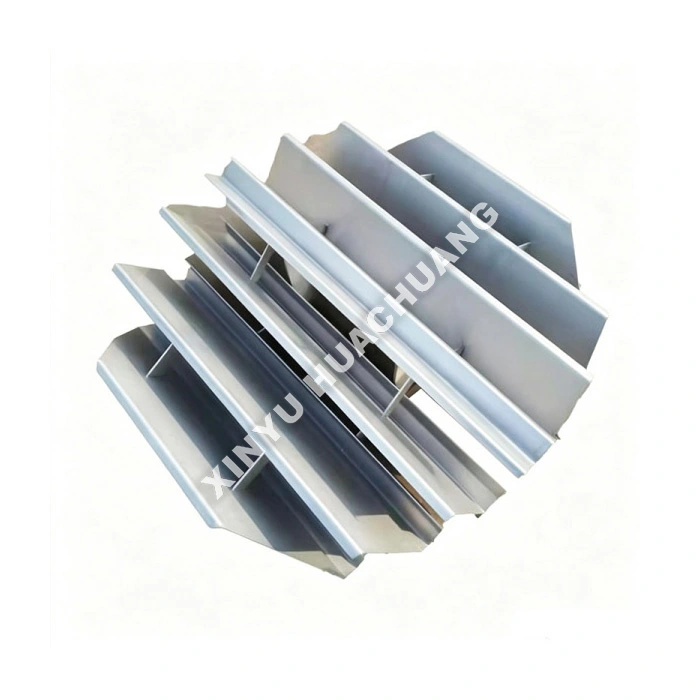

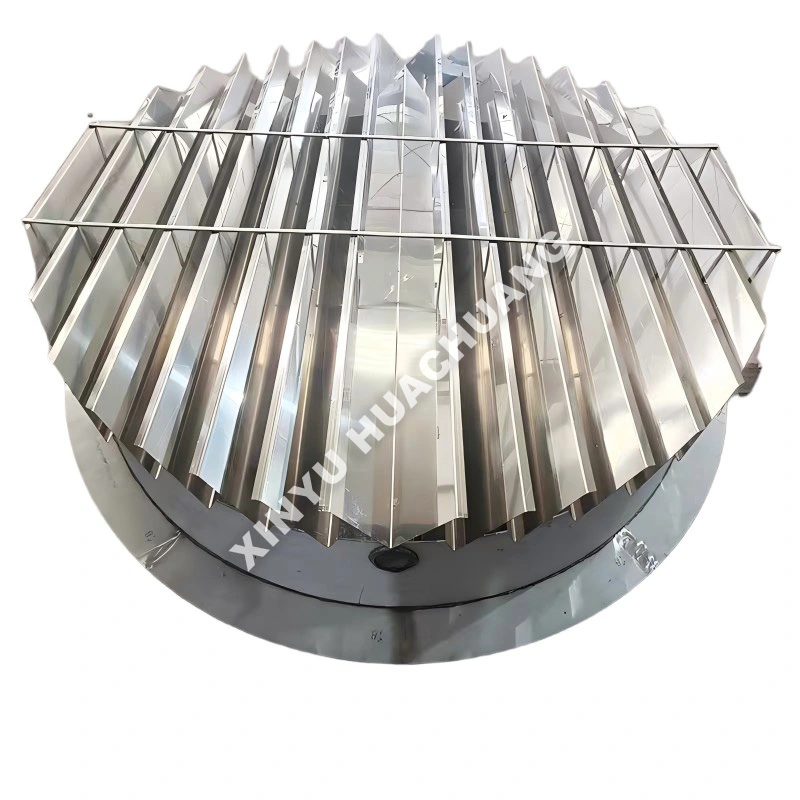

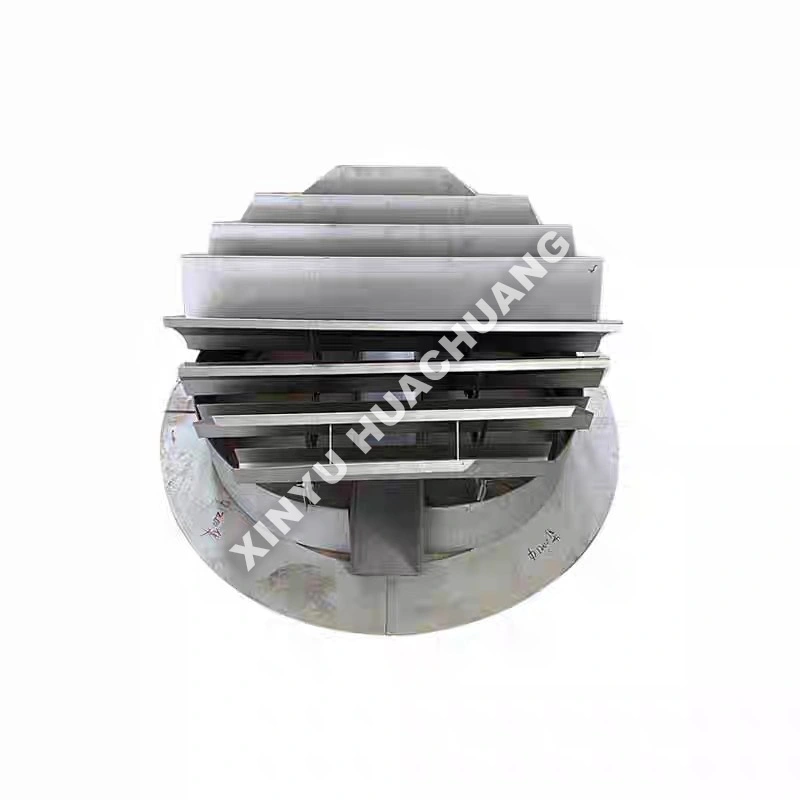

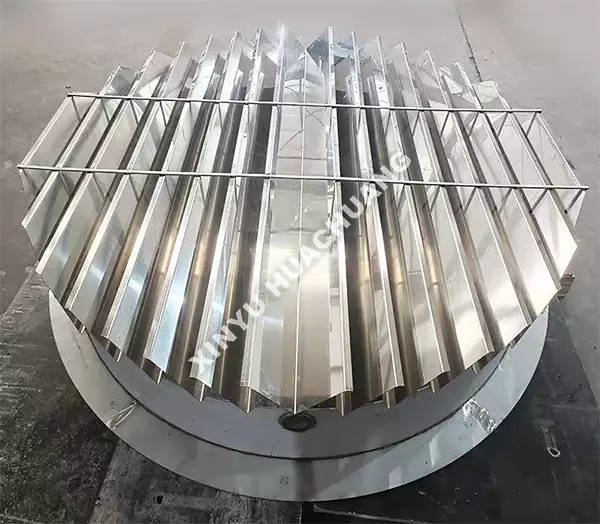

Liquid Collector Tray

The XINYU HUACHUANG Liquid Collector Tray is a critical tower internal component specifically engineered to intercept, collect, and redistribute liquid in small-diameter packed columns. Designed to prevent wall-flow and maintain separation efficiency, this Liquid Collector Tray ensures uniform vapor-liquid contact across the entire packing bed. Its compact, robust design makes it ideal for laboratory, pilot-scale towers, and processes requiring intermediate feed or side-draw.

What is a Liquid Collector Tray?

A Liquid Collector Tray is a horizontal pan installed between packing sections in distillation, absorption, or stripping columns. It captures liquid flowing down the packing and redistributes it evenly to the bed below. This Liquid Collector Tray is essential for maintaining column efficiency in tall pilot towers where liquid maldistribution can severely impact performance. It also serves as a platform for intermediate feed injection, side-draw withdrawal, or temperature monitoring points.

Why This One?

● Superior Liquid Collection: Optimized pan geometry with adequate depth ensures complete liquid capture even at high vapor velocities.

● Anti-Wall-Flow Design: Peripheral sealing rings and baffles prevent liquid from bypassing the packing and flowing down the column walls.

● High Vapor Passage Area: Open riser design minimizes pressure drop while allowing unrestricted vapor flow through the collector.

● Robust Construction: Built with premium SS304/316L or specialized alloys to withstand thermal stress and corrosive environments.

● Modular Installation: Precision-fabricated sections ensure quick assembly and perfect leveling inside the tower.

Technical Specifications

Selection Roadmap

● Define Liquid & Vapor Loads: Accurately calculate the expected liquid flow rate and vapor velocity. This determines the required pan depth, riser size, and vapor passage area of the Liquid Collector Tray.

● Assess Tower Diameter: Ensure the tray is precisely sized for your specific lab or pilot column diameter to prevent leakage.

● Material Compatibility: Select appropriate metallurgy based on process temperature and chemical aggressiveness. Standard SS316L covers most applications; highly corrosive environments require Hastelloy.

● Function Requirements: Determine if the tray needs additional features such as side-draw nozzles, intermediate feed points, or redistribution capabilities.

Quality Inspection Process

● Material Verification: Strict inspection of incoming metal sheets and welding materials to ensure metallurgical compliance.

● Dimensional Accuracy: Precision measurement of pan depth, riser diameter, and overall flatness to guarantee proper fit and liquid collection.

● Welding Quality: Comprehensive visual and NDT (non-destructive testing) inspection of all welds to ensure leak-proof performance.

● Surface Treatment: Verification of passivation or coating quality to ensure corrosion resistance in harsh operating environments.

● Fit-Up Test: Pre-assembly verification of modular sections to confirm proper alignment and sealing before shipment.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of a liquid collector tray in a packed column?

A: A liquid collector tray captures liquid flowing down from the packing section above and redistributes it evenly to the packing bed below. Without this tray, liquid maldistribution accumulates over multiple packing sections, progressively degrading separation efficiency. The collector tray essentially "resets" the liquid distribution at each packing boundary.

Q2: Why is a liquid collector tray essential in tall pilot towers?

A: In tall towers with multiple packing sections, liquid tends to drift toward the column wall as it descends, creating increasingly severe maldistribution with each successive section. Without collector trays between sections, this cumulative effect can render the lower packing sections nearly ineffective, wasting expensive catalyst or packing material.

Q3: Besides redistribution, what other functions does the collector tray serve?

A: The collector tray also serves as a platform for intermediate feed injection, side-draw withdrawal of intermediate products, and installation of temperature monitoring points. These additional functions make it a versatile process management tool, not just a liquid redistribution device.

Q4: How is the collector tray designed to minimize pressure drop?

A: The tray is designed with a high free cross-sectional area—often exceeding 85%—to allow rising vapor to pass through with minimal resistance. The liquid collection zones are strategically positioned to capture descending liquid without obstructing the vapor flow path, maintaining the low pressure drop advantages of packed column operation.

Q5: What materials are commonly used for liquid collector trays?

A: Collector trays are typically fabricated from SS304/316L for standard applications, Hastelloy or titanium for highly corrosive environments, and PTFE-lined steel for fluorine chemistry applications. The material selection matches the process media and operating conditions to ensure long service life.
