Reflux Ratio Controller

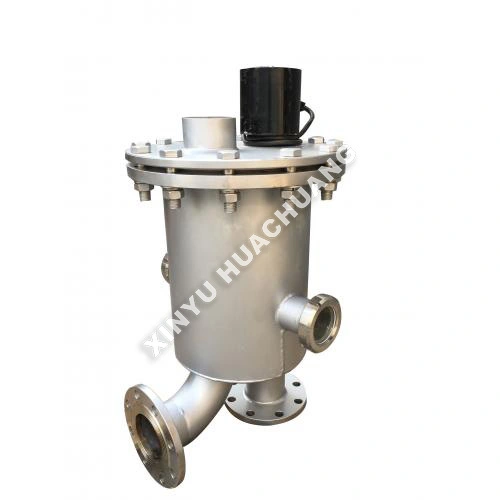

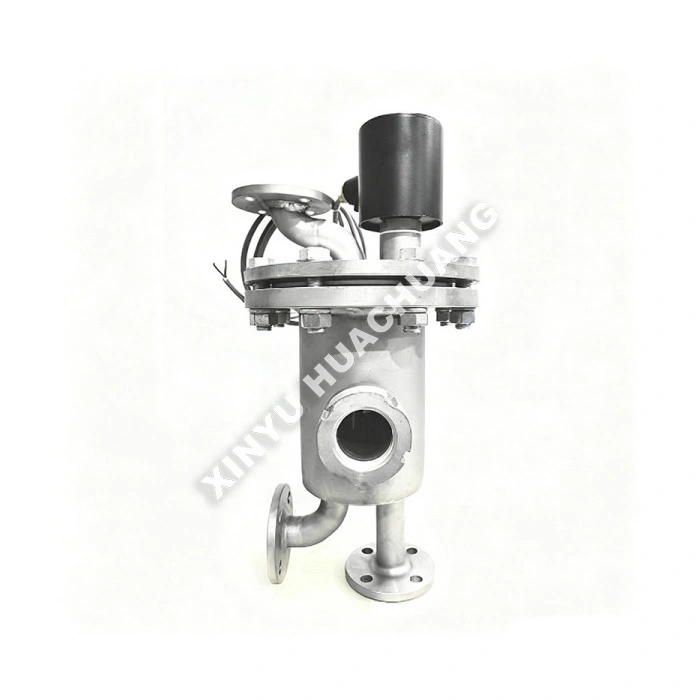

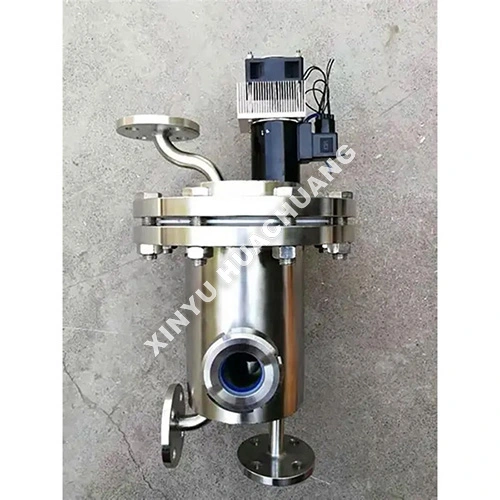

The XINYU HUACHUANG Reflux Ratio Controller is a highly precise, automated instrument specifically engineered for small-diameter laboratory and pilot-scale distillation systems. Designed to accurately control the proportion of liquid returned to the column versus the product collected, this Reflux Ratio Controller ensures optimal vapor-liquid equilibrium and high-purity separation. Its compact, user-friendly design makes it the ideal upgrade for R&D and pilot testing environments.

Working Principle

● Core Mechanism: The Reflux Ratio Controller operates by using an intelligent chip to control the opening and closing time of a solenoid valve or electromagnetic reflux head. By independently setting the reflux time and collection time, it accurately divides the condensed liquid.

● Materials: The control valve and head can be constructed from premium SS316L, glass, or PTFE to match the corrosiveness of the process media.

● Process Integration: This versatile Reflux Ratio Controller pairs seamlessly with batch or continuous distillation processes, including extractive and azeotropic distillation, and integrates perfectly with our PLC systems for unattended operation.

Technical Specifications

How to Choose Right?

● Define Column Diameter & Flow Rate: Ensure the valve capacity of the Reflux Ratio Controller matches the condensation rate of your lab or pilot column to prevent overflow or dry running.

● Material Compatibility: Select the appropriate valve and head material (Glass for visibility, SS316L for standard chemicals, PTFE for strong acids).

● Control Integration: Choose a standalone timer model for simple operations, or integrate with our central PLC for complex, automated multi-stage distillation processes.

Why Choose Us

● Direct Factory Pricing: As the original manufacturer of lab and pilot equipment, we eliminate middlemen, offering highly competitive pricing.

● Perfect System Integration: Our controllers are pre-calibrated to work flawlessly with XINYU HUACHUANG glass and metal distillation columns.

● Industrial-Grade Reliability: Built with top-tier relays and chips, ensuring long-term stability and precise timing for unattended R&D experiments.

● Comprehensive After-Sales Support: We provide lifetime technical support, English video tutorials, and remote troubleshooting to ensure your research never stops.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: How does the reflux ratio controller precisely divide condensed liquid?

A: The controller uses an intelligent chip to govern the opening and closing time of a solenoid valve or electromagnetic reflux head. By independently setting the reflux time (liquid returned to the column) and the collection time (liquid drawn as product), it accurately divides the condensed liquid into the exact reflux-to-product ratio you specify.

Q2: What reflux ratio range can this controller achieve?

A: The controller supports a wide range of reflux ratios by adjusting the time-based splitting mechanism. Whether you need a 1:1 ratio for rough separations or a 50:1 ratio for high-purity cuts, the intelligent chip precisely controls each cycle to maintain the target ratio consistently throughout the operation.

Q3: Why is time-based splitting preferred over mechanical diversion for reflux control?

A: Time-based electromagnetic splitting has no moving mechanical parts in the liquid stream, eliminating wear, leakage, and cross-contamination risks associated with mechanical diverters. The solenoid valve or electromagnetic reflux head provides fast, reliable switching with virtually zero dead volume between reflux and product streams.

Q4: Which distillation processes is this controller compatible with?

A: The controller pairs seamlessly with batch and continuous distillation processes, including extractive distillation, azeotropic distillation, and reactive distillation. It integrates perfectly with PLC systems for fully automated, unattended operation across any distillation configuration.

Q5: What materials are available for the control valve and reflux head?

A: The control valve and head can be constructed from SS316L for standard applications, glass for visual monitoring and chemical inertness, or PTFE for highly corrosive process media. The material selection ensures compatibility with the distilled compounds while maintaining precise control performance.
