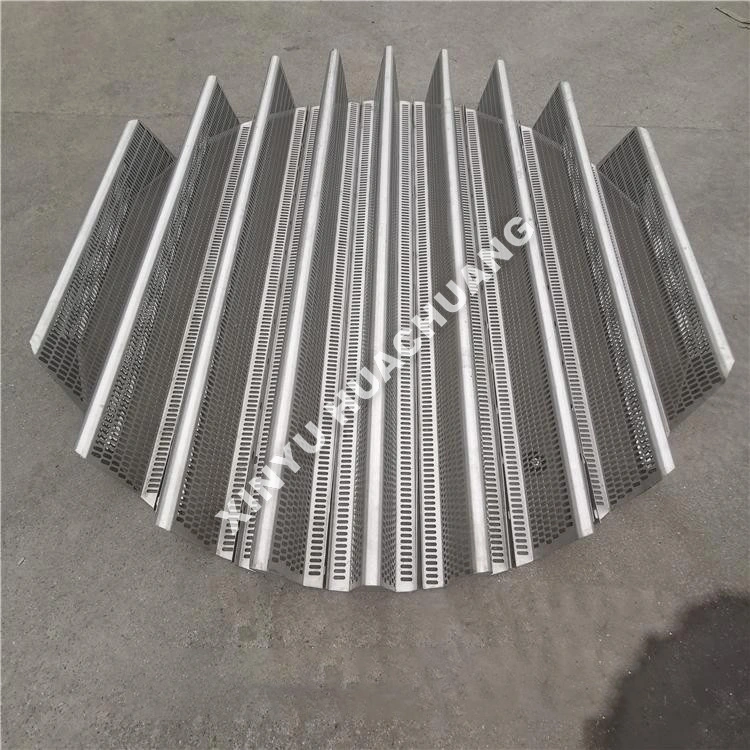

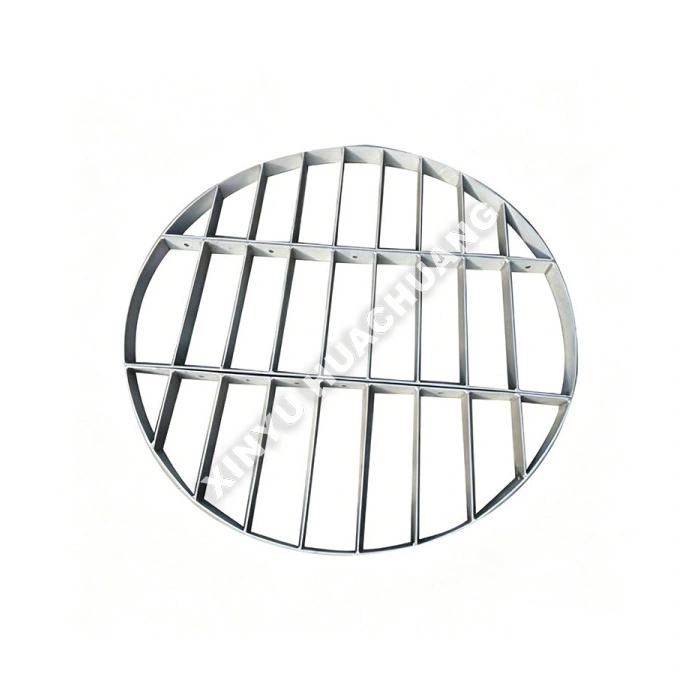

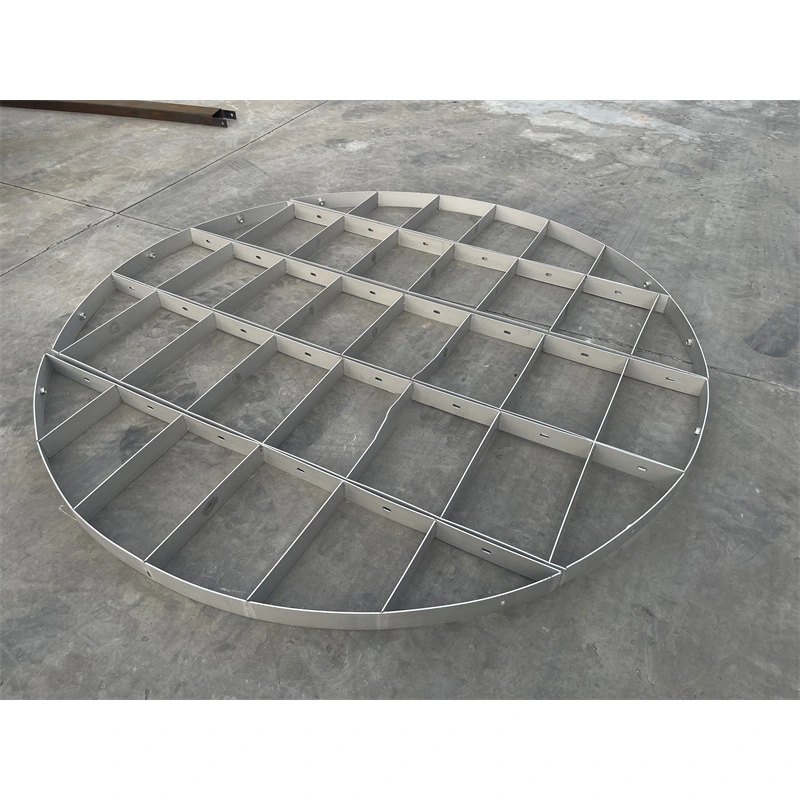

Distillation Tower Packing Support Grid

The XINYU HUACHUANG Distillation tower packing support grid is a critical structural component specifically engineered for small-diameter laboratory and pilot-scale packed towers. Designed to bear the weight of structured or random packing while maximizing open area, this Distillation tower packing support grid ensures unhindered vapor-liquid flow and prevents column flooding. Its robust yet open design makes it the ideal foundation for achieving high separation efficiency in R&D and pilot testing environments.

Working Principle

The Distillation tower packing support grid operates by providing a rigid, horizontal platform at the bottom of the packing bed. It is constructed with vertical or horizontal bars arranged to create a high free cross-sectional area. This open geometry allows rising vapor and descending liquid to pass through with minimal pressure drop, while simultaneously preventing the packing particles from falling into the lower section. The smooth surface of the grid also helps prevent particulate accumulation and fouling at the base of the column.

Where Does It Shine?

● High Open Area & Low Pressure Drop: Maximizes the free cross-sectional area to ensure smooth vapor-liquid flow, preventing bottlenecks in small-diameter columns.

● High Mechanical Strength: Engineered to reliably support the weight of the packing bed and withstand operational pressure fluctuations without deformation.

● Anti-Fouling Design: Smooth surfaces and optimized bar spacing prevent solids, polymers, or particulates from accumulating and clogging the support.

● Precision Fit: Custom-machined to perfectly match the inner diameter of lab and pilot glass or metal columns, ensuring no bypassing of liquid.

● Versatile Materials: Available in SS304/316L, Hastelloy, PTFE, and glass to match the chemical compatibility of your specific process.

Technical Specifications

Where is it applicable?

● Academic & R&D Laboratories: Fundamental kinetic studies, separation process visualization, and catalyst testing.

● Pilot-Scale Plants: Bridging the gap between benchtop R&D and industrial scale-up for fine chemicals and pharmaceuticals.

● Essential Oils & Natural Extracts: Gentle, high-purity separation of heat-sensitive terpenes and fragrances.

● Specialty Solvents: Continuous recovery and ultra-high purification of high-value organic solvents.

● Food & Beverage: Concentration of natural flavors and extraction of bioactive compounds.

Usage Precautions

● Precise Leveling: Ensure the support grid is installed perfectly horizontally. An unlevel grid can cause liquid pooling on one side, leading to severe maldistribution and reduced separation efficiency.

● Packing Size Compatibility: Verify that the bar spacing of the Distillation tower packing support grid is smaller than the minimum dimension of your packing to prevent particles from falling through.

● Secure Fixation: In small-diameter columns, ensure the grid is properly clamped or welded to prevent it from shifting or lifting during high vapor flow or vacuum operations.

● Pre-Cleaning: Always clean the grid thoroughly before loading packing to remove any machining oils, metal shavings, or debris that could contaminate your process.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: What is the main purpose of a packing support grid in a distillation column?

A: The support grid provides a rigid, horizontal platform at the bottom of the packing bed to hold all packing elements or structured packing modules securely in place. Without it, the packing would collapse into the lower section of the column, blocking vapor flow and completely destroying separation performance.

Q2: How does the grid design minimize its impact on column performance?

A: The grid is constructed with vertical or horizontal bars arranged to create a high free cross-sectional area, often exceeding 90%. This open geometry allows rising vapor and descending liquid to pass through with minimal pressure drop, ensuring the grid itself does not become a bottleneck in the mass transfer process.

Q3: Why is anti-fouling design important for a support grid?

A: The support grid sits at the lowest point of the packing bed, where particulates, polymer deposits, and crystallized salts naturally accumulate. A smooth surface and open geometry prevent material buildup at the base of the column, reducing the frequency of shutdowns for cleaning and maintaining consistent pressure drop throughout the campaign.

Q4: How is the support grid sized relative to the packing above it?

A: The grid's opening size is carefully matched to the packing dimensions to prevent any packing elements from falling through. For random packing, the grid openings are significantly smaller than the smallest packing element. For structured packing, the grid is designed to match the module footprint and provide level support across the entire bed.

Q5: What construction materials are available for support grids?

A: Support grids are available in SS304/316L for standard applications, Hastelloy and titanium for corrosive environments, and carbon steel with protective coatings for cost-sensitive installations. The material is selected to match the column shell material and process conditions, ensuring galvanic compatibility and long service life.
