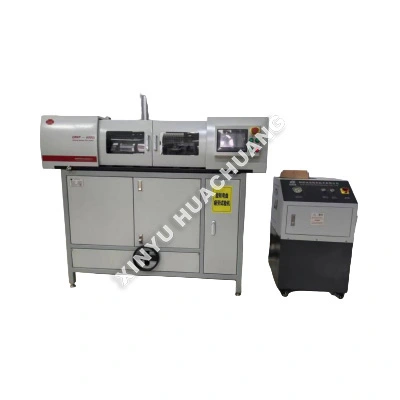

Pipe Fitting Bending Fatigue Testing Machine

The XINYU HUACHUANG Pipe Fitting Bending Fatigue Testing Machine is a highly specialized, industrial-grade testing apparatus specifically engineered to assess the structural integrity and fatigue life of pipeline components under repeated bending loads. Designed to simulate real-world dynamic stresses, this Pipeline Component Bending Fatigue Testing Machine precisely applies cyclic bending moments to evaluate crack initiation and propagation. Equipped with intelligent PLC/PC automation and multi-level safety interlocks, it ensures safe, unattended long-term operation while delivering highly reproducible S-N curve data for R&D, quality control, and industry certification.

Working Principle

The Pipe Fitting Bending Fatigue Testing Machine operates by securely clamping a pipe or fitting specimen and applying a controlled, repetitive bending moment using high-precision servo-hydraulic or servo-electric actuators. The machine can be configured for single-plane bending, rotary bending, or complex multi-axial loading to simulate actual pipeline operational stresses. Throughout the test, the system continuously monitors and records parameters such as bending angle, applied moment, cycle count, and strain. The test automatically terminates when the specimen fractures or reaches a predefined leakage threshold, providing accurate fatigue life data.

Where Does It Shine?

● High-Precision Cyclic Loading: Features premium servo actuators and load cells to ensure accurate and stable application of complex bending waveforms (sine, triangle, block) with minimal noise.

● Multi-Axis Testing Capability: Supports single-plane, double-plane, and rotary bending fatigue tests to accurately simulate real-world pipeline installation and operational stresses.

● Intelligent Data Acquisition: Integrated PC software automatically records real-time curves (Moment-Angle, Cycle-Failure), calculates fatigue life, and generates comprehensive test reports.

● Robust & Safe Construction: Built with a heavy-duty cast frame and multi-level safety interlocks (overload protection, emergency stop, fracture containment, leak detection) to ensure operator safety and equipment longevity.

● Customizable Fixturing: Offers a wide range of specialized clamping fixtures and end connectors to securely hold various pipe diameters, wall thicknesses, and fitting geometries.

Technical Specifications

Where is it applicable?

● Oil & Gas Industry: Fatigue evaluation of drill pipes, casing, tubing, and pipeline fittings under extreme cyclic bending.

● Petrochemical & Power Generation: Testing of heat exchanger tubes, boiler pipes, and high-pressure steam lines.

● Automotive & Aerospace: Evaluating the durability of exhaust systems, fuel lines, and hydraulic tubing under vibration and bending.

● Construction & Infrastructure: Assessing the fatigue life of structural steel tubes, scaffolding, and bridge components.

● Medical Devices: Testing the flexibility and fatigue resistance of catheters, guidewires, and stents.

Usage Precautions

● Proper Specimen Alignment: Always ensure the specimen is perfectly aligned in the fixtures to prevent unintended axial loads or eccentric bending that can skew fatigue results.

● Clamping Force Verification: Verify that the clamping force is sufficient to prevent specimen slippage during high-cycle testing, but not so high as to cause premature crushing at the grip points.

● Leak Detection Setup: For hollow pipeline components, always connect the internal pressure monitoring system and leak detection sensors before starting the test.

● Gradual Load Ramp-Up: Utilize the software's programmable ramp-up function to gradually increase the bending amplitude to the target level, preventing shock loading.

Maintenance Guide

● Daily: Inspect all clamping fixtures and grips for wear, cracks, or deformation. Check hydraulic oil levels (if applicable) and verify that all safety interlocks are functioning properly.

● Weekly/Monthly: Lubricate all moving joints, guide rails, and actuator linkages according to the manufacturer's specifications. Clean the test area and inspect electrical connections for looseness.

● Quarterly: Perform a comprehensive system calibration of load cells, angle encoders, and pressure transducers using certified reference standards. Inspect hydraulic hoses and fittings for signs of wear or leakage.

● Post-Test: Always follow a proper shutdown sequence after a specimen fracture. Carefully remove the broken specimen, clean the fixtures, and inspect the actuator for any damage caused by the sudden load release.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: How does the machine simulate real-world pipeline operational stresses?

A: The machine securely clamps a pipe or fitting specimen and applies controlled, repetitive bending moments using high-precision servo-hydraulic or servo-electric actuators. It can be configured for single-plane bending, rotary bending, or complex multi-axial loading to replicate the actual stress conditions that pipelines experience in service—including ground settlement, thermal expansion, and vibration-induced fatigue.

Q2: What parameters does the system monitor throughout the fatigue test?

A: The system continuously records bending angle, applied moment, cycle count, and strain data in real time. This comprehensive dataset allows engineers to plot S-N curves (stress versus number of cycles) and determine the exact fatigue life of the pipeline component under the specified loading conditions.

Q3: How does the machine determine when a specimen has failed?

A: The test automatically terminates when the specimen fractures or reaches a predefined leakage threshold. For pressurized pipe tests, the system monitors internal pressure and detects any pressure drop indicating a through-wall crack, ensuring that the fatigue life measurement reflects actual failure rather than arbitrary cycle limits.

Q4: Can the machine test both straight pipe sections and fittings such as elbows and tees?

A: Yes. The clamping system and actuator configuration are adjustable to accommodate straight pipe sections, elbows, tees, flanges, and other pipeline fittings. Each specimen type can be tested under its most critical bending mode to identify the weakest point in the piping system.

Q5: Why is bending fatigue testing essential for pipeline qualification?

A: Pipelines in oil and gas, chemical processing, and power generation are subject to cyclic bending loads from ground movement, thermal cycling, and equipment vibration. Bending fatigue testing provides the cycle-to-failure data needed to set inspection intervals, validate design margins, and ensure compliance with pipeline integrity standards such as API 570 and ASME B31.3.
