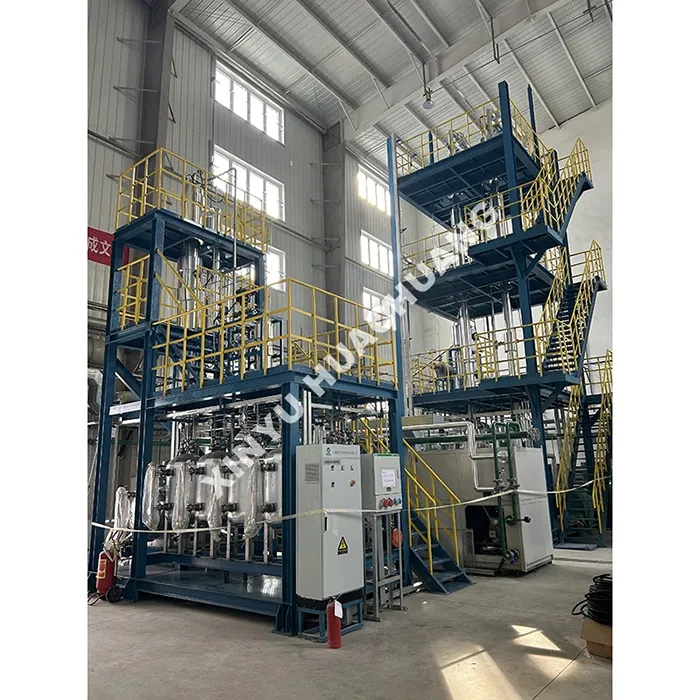

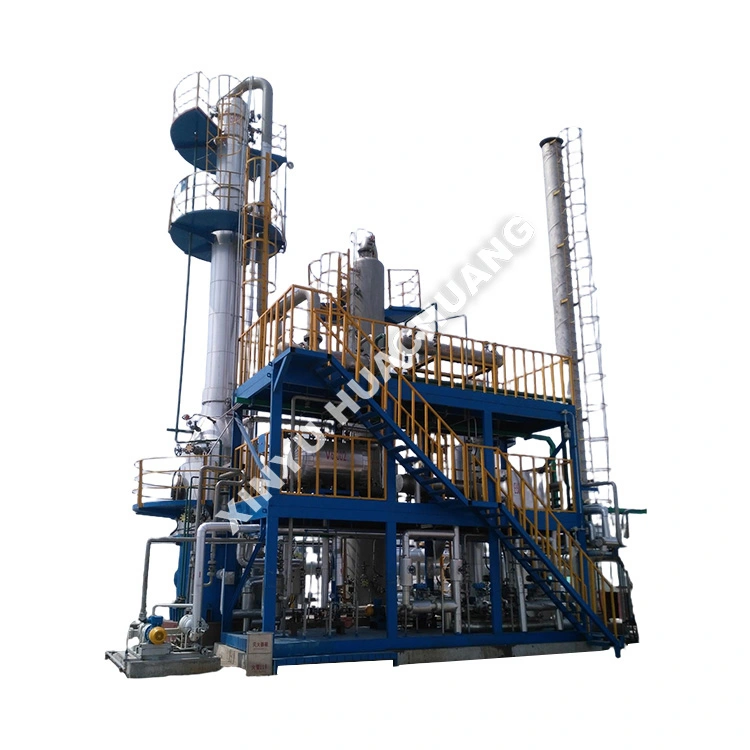

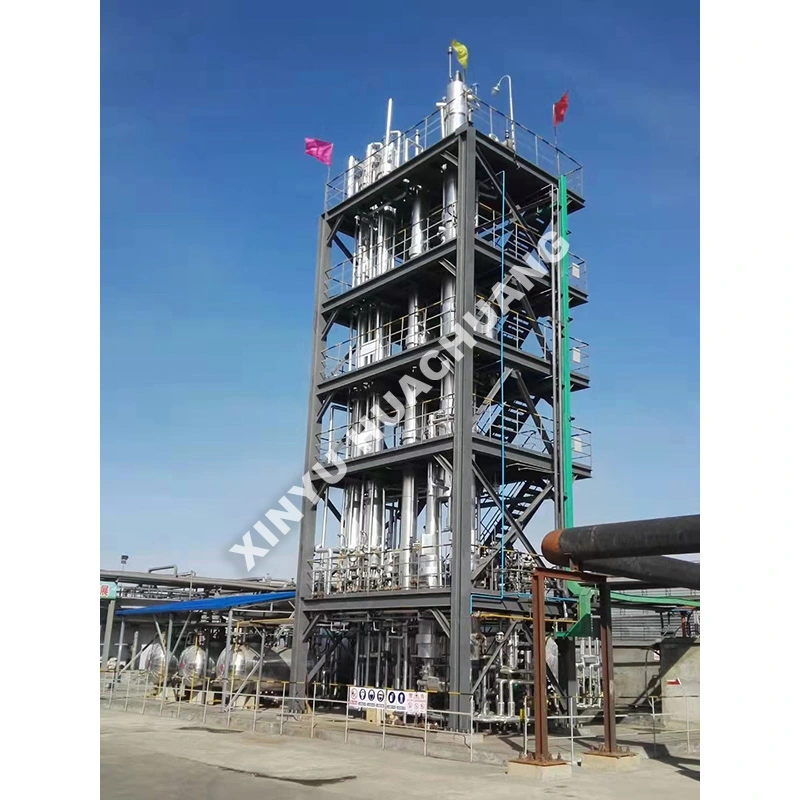

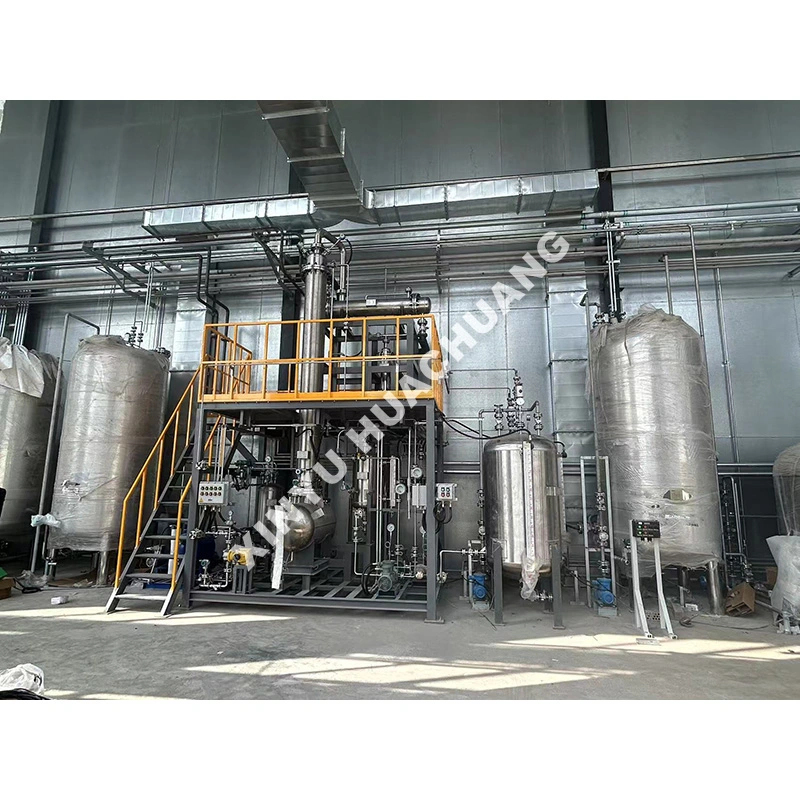

NMP Dehydration Distillation Unit

The XINYU HUACHUANG NMP Dehydration Distillation Unit is a highly specialized, industrial-grade separation system specifically engineered to overcome the challenges of purifying N-Methyl-2-pyrrolidone (NMP). Because NMP is highly hygroscopic and prone to thermal degradation at elevated temperatures, this unit utilizes advanced high-vacuum continuous distillation to lower boiling points and prevent hydrolysis. Equipped with intelligent PLC automation, precise temperature control, and nitrogen blanketing, the NMP Dehydration Distillation Unit ensures safe, unattended operation while achieving ultra-low moisture levels (≤50 ppm) and high purity (≥99.9%) for lithium battery and semiconductor applications.

What is an NMP Dehydration Distillation Unit?

An NMP Dehydration Distillation Unit is a continuous fractional distillation apparatus designed to remove water, light impurities, and heavy residues from waste or crude NMP. Operating under high vacuum, the unit vaporizes the NMP at significantly reduced temperatures to prevent thermal cracking and the formation of N-methylbutylamine and butyric acid. The system typically features a multi-stage column design where water and light ends are continuously drawn from the top, high-purity NMP is collected as a side-draw or bottom product, and heavy polymers are discharged from the reboiler. This unit is the critical core for producing battery-grade and electronic-grade NMP, ensuring that moisture and metallic impurities meet stringent industry standards.

Technical Specifications

What Can It Do for You?

● Low-Temperature High-Vacuum Distillation: Operates under deep vacuum to lower the boiling point of NMP, strictly preventing thermal degradation, discoloration, and acid value increase.

● Ultra-Low Moisture Achievement: Optimized column internals and precise reflux control efficiently separate water from NMP, achieving moisture levels as low as 20 ppm.

● Nitrogen Blanketing Protection: A continuous nitrogen purge system prevents the hygroscopic NMP from absorbing moisture from the atmosphere and protects against oxidation.

● Intelligent PLC Automation: Centralized control system enables unattended long-term operation, automated reflux ratio adjustment, and real-time data logging for temperature, pressure, and vacuum.

● High-Purity Metallurgy: Constructed with premium SS316L (or electropolished SS316L) to prevent metallic ion contamination, ensuring suitability for semiconductor and battery-grade applications.

Usage Precautions

● Strict Temperature Control: Never exceed 160℃ in the reboiler. High temperatures will cause NMP to hydrolyze, resulting in color changes, increased acidity, and ruined product purity.

● Continuous Nitrogen Flow: Always maintain a slight positive pressure of high-purity nitrogen in the system and storage tanks to prevent moisture absorption from ambient air.

● Vacuum System Maintenance: Ensure the vacuum system is operating stably before introducing feedstock. Fluctuations in vacuum will cause boiling point variations and compromise separation efficiency.

● Cooling Before Shutdown: Always stop the feed and maintain vacuum and cooling water flow until the system temperature drops below 80℃ to prevent residual NMP from degrading in the hot reboiler.

Common Mistakes vs. Correct Methods

● Mistake: Operating at atmospheric pressure or low vacuum to speed up the process. Correct Method: Always operate under high vacuum. High-vacuum continuous distillation is the only safe way to dehydrate NMP without causing thermal cracking and hydrolysis.

● Mistake: Using standard water-treatment ion exchange resins for polishing. Correct Method: Always use specialized solvent-resistant, low-bleed ion exchange resins. Standard resins will dissolve organic contaminants into the NMP, ruining the electronic-grade purity.

● Mistake: Exposing the product to ambient air during sampling or transfer. Correct Method: Utilize closed-loop sampling valves and nitrogen-pressurized transfer lines. NMP absorbs moisture rapidly; any exposure to air will immediately increase the ppm water content.

Shipping & Packaging

● Professional Packaging: The NMP Dehydration Distillation Unit is securely packed in fumigation-free export-standard wooden crates. All sensitive instruments (PLC panels, vacuum pumps, valves) are wrapped in shock-proof foam and moisture-proof film.

● Component Fixation: Internal distillation columns, reboilers, and piping are firmly braced with steel supports to prevent vibration damage during ocean or air freight.

● Documentation: A comprehensive English operation manual, electrical schematics, P&ID diagrams, and a detailed packing list are included in a waterproof document pouch attached to the crate.

● Global Logistics: We support EXW, FOB, CIF, and DDP terms, providing reliable door-to-door delivery services to battery material and chemical processing facilities worldwide.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: Why must NMP dehydration be performed under high vacuum?

A: NMP is thermally sensitive—at elevated temperatures it can crack into N-methylbutylamine and butyric acid, both of which degrade product quality. High vacuum operation significantly lowers the boiling point of NMP, allowing dehydration to proceed at reduced temperatures that prevent thermal cracking and preserve the chemical integrity of the solvent.

Q2: What impurities does this unit remove from waste or crude NMP?

A: The multi-stage column design removes three categories of contaminants simultaneously: water and light ends are continuously drawn from the top of the column, high-purity NMP is collected as a side-draw or bottom product, and heavy polymeric residues are discharged from the reboiler. This comprehensive purification produces battery-grade or electronic-grade NMP.

Q3: What quality standards can the purified NMP achieve?

A: The unit is designed to produce NMP that meets the stringent moisture and metallic impurity limits required for battery-grade and electronic-grade applications. This includes controlling water content to very low levels (typically below 50 ppm) and ensuring metallic contaminants remain within parts-per-billion specifications.

Q4: How does the side-draw design improve NMP product quality?

A: By collecting high-purity NMP as a side-draw rather than from the very bottom of the column, the design avoids carrying over heavy polymeric residues that accumulate in the reboiler. This ensures the product stream is free from high-boiling contaminants that would otherwise compromise NMP performance in battery or semiconductor manufacturing.

Q5: Can this unit handle NMP recovered from different sources, such as battery manufacturing waste and electronic cleaning waste?

A: Yes. The multi-stage column and adjustable operating parameters allow the unit to accommodate NMP feedstocks with varying impurity profiles from different industrial sources. Whether the waste NMP comes from battery electrode coating or electronic component cleaning, the system can be tuned to deliver consistent high-purity output.
