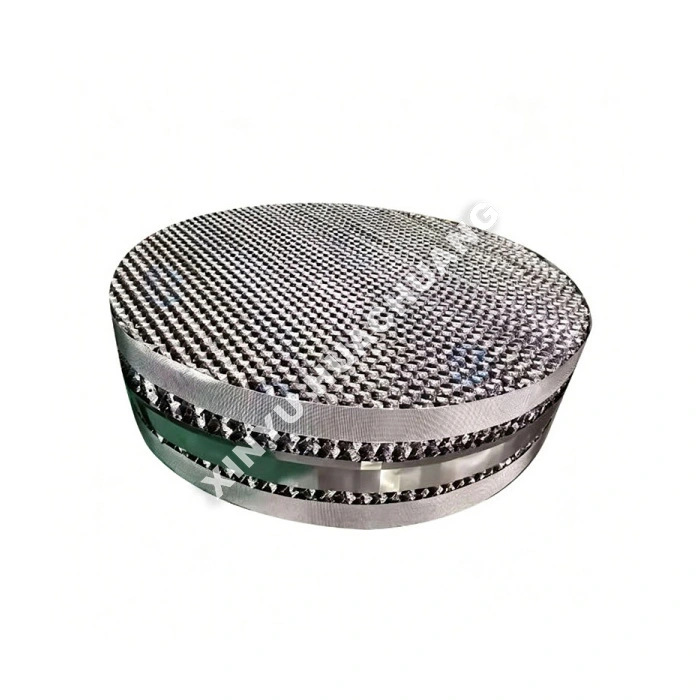

Plate Corrugated Packing

The XINYU HUACHUANG Plate Corrugated Packing is a premium structured packing designed to maximize separation efficiency and capacity in distillation, absorption, and stripping columns. Engineered with precise corrugation angles and perforated surfaces, this packing promotes uniform liquid distribution and excellent surface wetting. The Plate Corrugated Packing significantly enhances mass transfer while maintaining a low pressure drop, making it an ideal upgrade for both new column designs and existing tower revamps.

What is Plate Corrugated Packing?

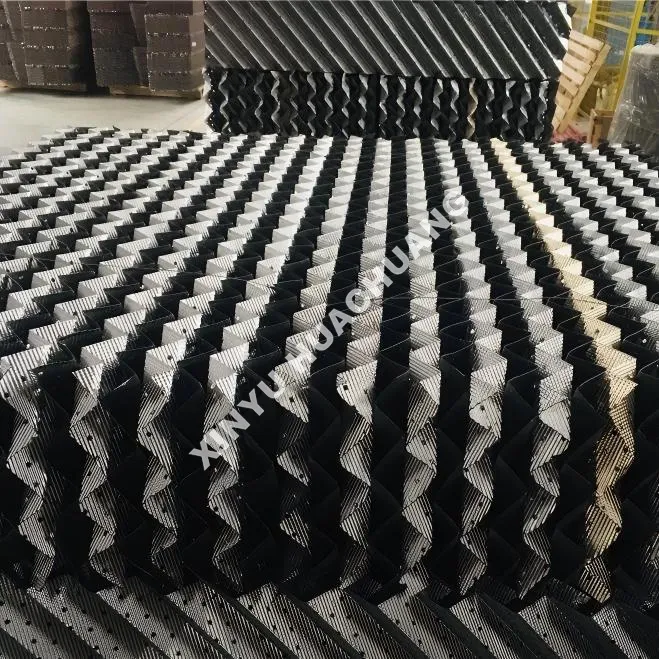

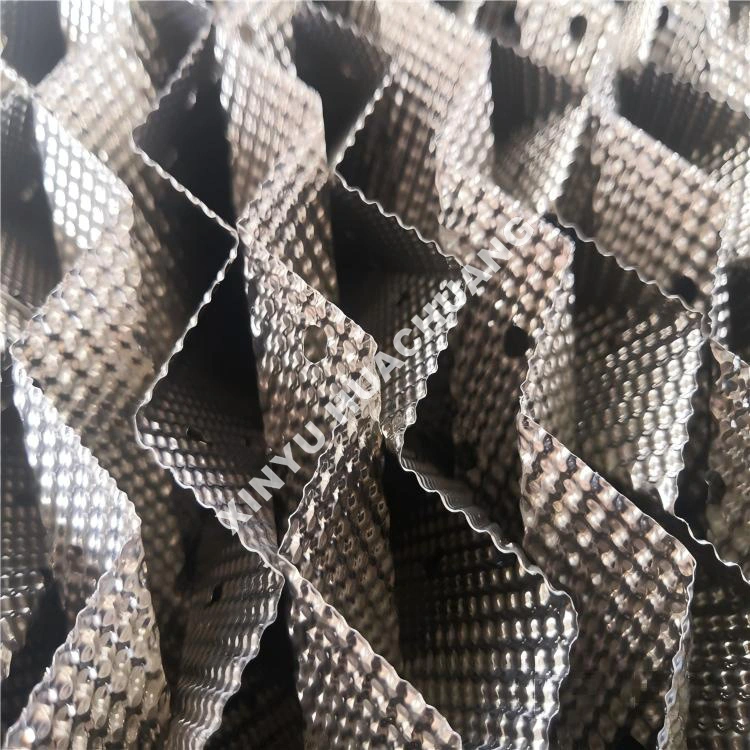

Plate Corrugated Packing is a type of structured tower packing made from perforated metal sheets that are embossed with channel corrugations. These sheets are stacked in alternating layers, typically at a 45° or 30° angle, to create a continuous, open flow path for vapor and liquid. This design retains the high-efficiency structure of wire gauze packing but offers superior mechanical strength and anti-fouling properties. It is widely used to replace random packing or trays in industrial towers to increase throughput, improve product purity, and reduce energy consumption.

What Makes It Stand Out?

● High Mass Transfer Efficiency: The corrugated channels and perforations promote intense vapor-liquid mixing and uniform liquid spreading, achieving high theoretical plate numbers.

● Low Pressure Drop: The open, structured geometry allows vapor to flow smoothly, significantly reducing energy consumption compared to traditional random packing.

● High Capacity & Anti-Fouling: The large void ratio and smooth surface prevent clogging, making it highly suitable for systems containing particulates or prone to polymerization.

● Customizable Materials: Available in a wide range of metals including SS304, SS316L, Carbon Steel, Aluminum, and Copper Bronze to suit specific chemical environments.

● Easy Installation: Designed with precise dimensions and supporting grids, ensuring quick and secure installation inside the tower.

Technical Specifications

Where can it be used?

● Petrochemicals: Ethylbenzene/Styrene separation, fatty acid purification, and crude oil fractionation.

● Chemical Processing: Cyclohexanone/Cyclohexanol separation, Caprolactam purification, and absorption/desorption processes.

● Fine Chemicals & Pharmaceuticals: High-purity solvent recovery and heat-sensitive material separation.

● Environmental Protection: Waste gas absorption, desulfurization, and wastewater stripping.

The Full Manufacturing Chain

1. Raw Material Preparation: Precision cutting of high-quality metal sheets based on specific model requirements.

2. Embossing & Perforating: Stamping the metal sheets to create uniform corrugation channels and micro-perforations for optimal liquid distribution.

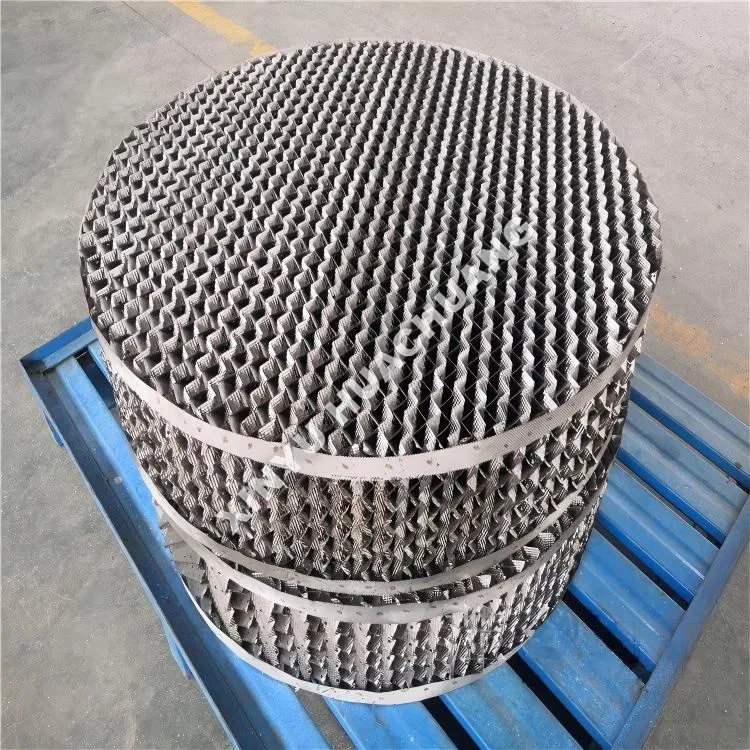

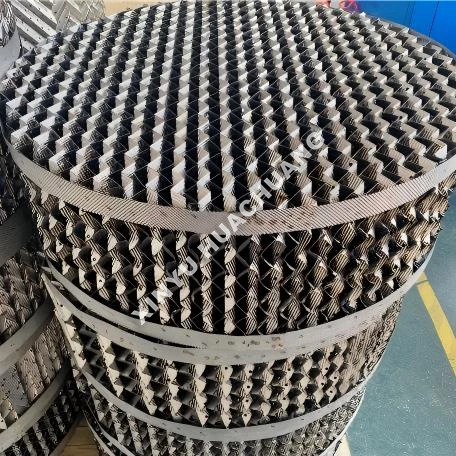

3. Stacking & Assembly: Stacking the corrugated sheets in alternating directions and securing them into standard modular blocks using stainless steel bands.

4. Quality Inspection: Rigorous testing of block dimensions, surface area, and structural integrity to ensure strict compliance with design parameters.

5. Packaging & Shipping: Securely packed in wooden crates or pallets with protective wrapping to prevent deformation during global logistics and transportation.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: What makes plate corrugated packing different from random packing?

A: Unlike random packing that is dumped loosely into the column, plate corrugated packing consists of perforated metal sheets embossed with channel corrugations and stacked in alternating layers at 45° or 30° angles. This creates continuous, organized flow paths that deliver higher throughput, better product purity, and lower energy consumption compared to the chaotic arrangement of random packing.

Q2: Why is plate corrugated packing preferred over wire gauze packing in certain applications?

A: While both are structured packings, plate corrugated packing offers superior mechanical strength and anti-fouling properties. Wire gauze packing is more fragile and prone to clogging in dirty service. When the process involves particulates, polymerization tendencies, or heavy fouling, plate corrugated packing provides a more robust and maintenance-friendly solution.

Q3: Can plate corrugated packing replace existing trays in an operating column?

A: Yes. Many industrial towers originally equipped with trays can be retrofitted with plate corrugated packing to increase capacity, improve separation efficiency, and reduce pressure drop. The structured design typically delivers higher throughput and lower energy consumption without requiring a new column shell.

Q4: What corrugation angles are available, and how do they affect performance?

A: The sheets are typically stacked at 45° or 30° angles. A 45° arrangement provides higher mass transfer efficiency, making it ideal for high-purity separations. A 30° arrangement offers lower pressure drop and higher capacity, better suited for vacuum distillation and high-throughput applications.

Q5: What materials are used to manufacture plate corrugated packing?

A: The packing is manufactured from perforated metal sheets in various materials including SS304, SS316L, carbon steel, and specialized alloys like Hastelloy or titanium for highly corrosive environments. The material selection depends on the process media, operating temperature, and corrosion requirements.
