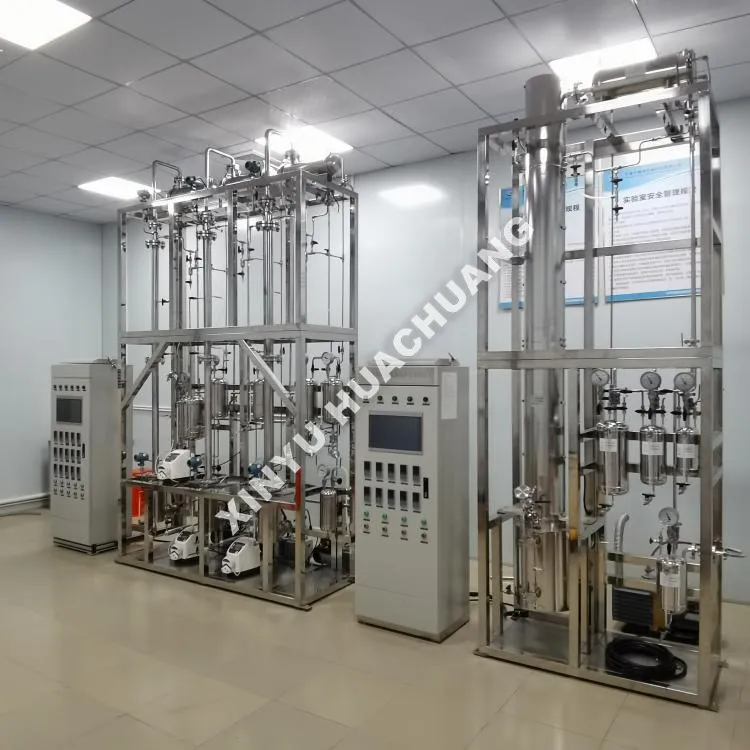

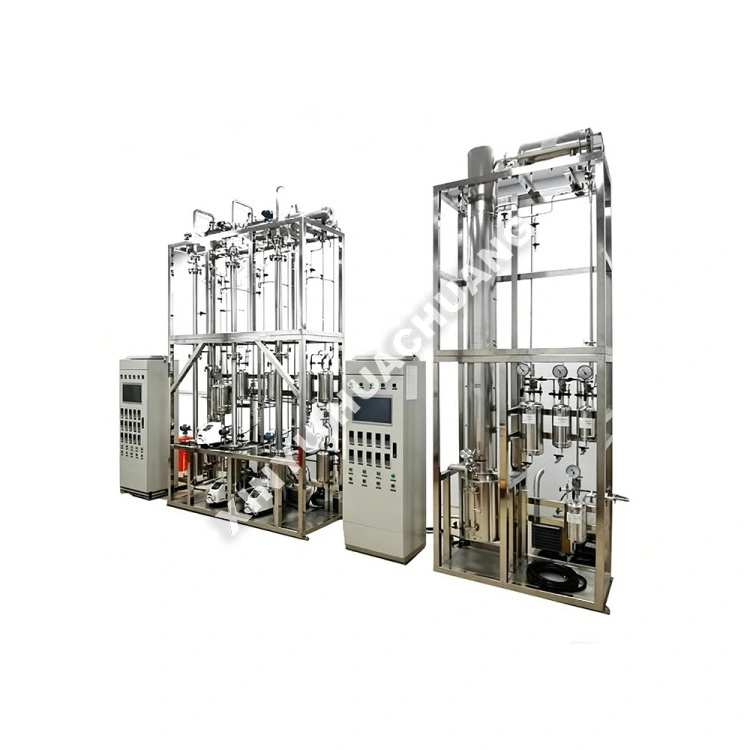

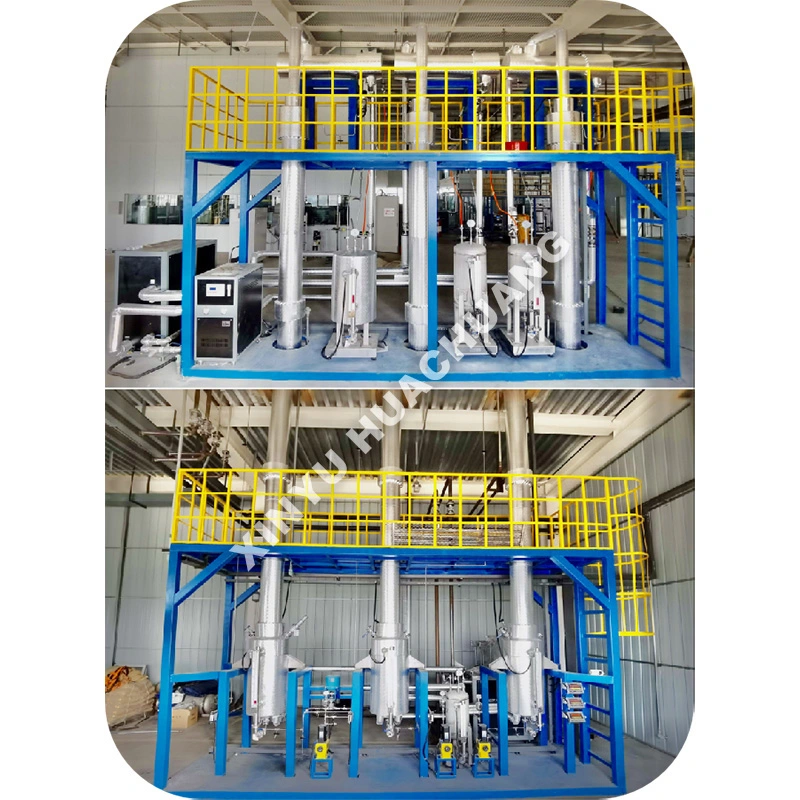

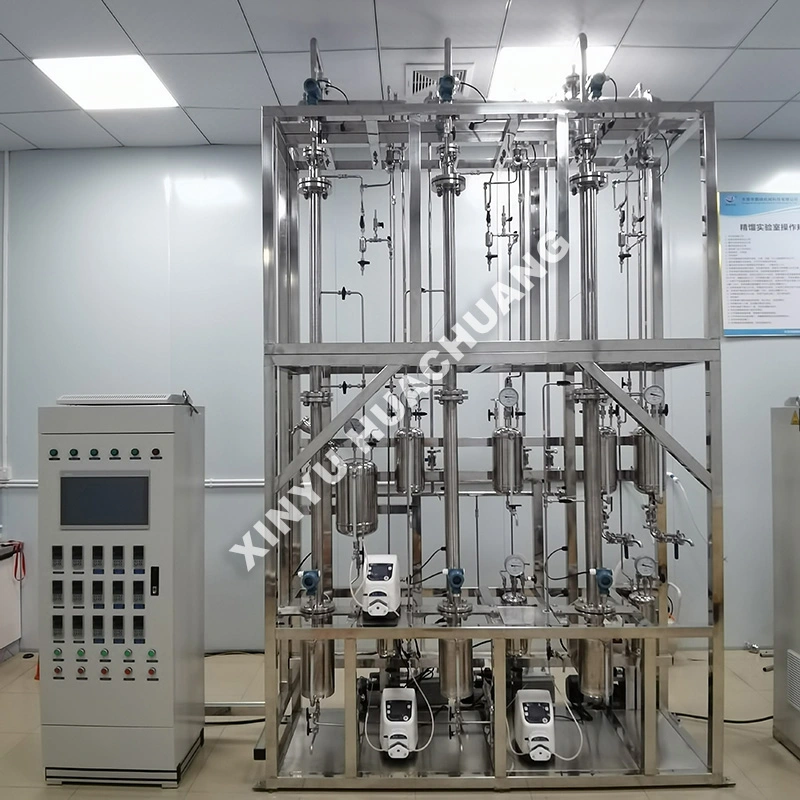

Stainless-Steel Multi-Column Continuous Distillation Unit

The XINYU HUACHUANG Stainless-Steel Multi-Column Continuous Distillation Unit is an advanced, industrial-grade separation system specifically engineered for large-scale purification and continuous solvent recovery. Designed to maximize energy efficiency and product throughput, this unit utilizes a series of interconnected fractionating columns to separate complex multi-component liquid mixtures with exceptional precision. Equipped with intelligent PLC automation, automated reflux ratio control, and multi-level safety interlocks, the Stainless-Steel Multi-Column Continuous Distillation Unit ensures stable, unattended long-term operation while delivering highly reproducible purity data for process optimization and commercial production.

Working Principle

● Core Mechanism: Stainless-Steel Multi-Column Continuous Distillation Unit operates on a continuous fractional distillation principle. The liquid feedstock is continuously metered into the system and preheated before entering the primary column. As the mixture is heated in the reboiler, vapor rises through the column internals (plates or packing), undergoing repeated condensation and revaporization. Light components are continuously drawn from the top condenser, while heavy components are discharged from the bottom. This continuous cascade across multiple columns allows for the precise separation of complex mixtures into multiple high-purity fractions.

● Reactor Materials: To ensure durability, corrosion resistance, and product purity, the entire system is constructed from premium stainless steel. Standard SS304/316L is used for most applications, while highly corrosive environments or high-purity pharmaceutical requirements may utilize specialized alloys like Hastelloy or 904L.

● Process Integration: This versatile Stainless-Steel Multi-Column Continuous Distillation Unit pairs seamlessly with various upstream and downstream processes. It integrates flawlessly with preheaters, vacuum systems for heat-sensitive materials, automated product fraction collectors, and online analytical instruments (e.g., GC) for real-time purity monitoring and automated cut-point adjustment.

Technical Specifications

How to Choose Right?

● Define Your Feedstock & Target Products: Clearly identify the number of components, boiling point differences, and required product purities. This determines the number of columns, column heights, and internal configurations needed for the Stainless-Steel Multi-Column Continuous Distillation Unit.

● Material Compatibility: Select the appropriate stainless steel grade based on the chemical properties of your mixture. Standard SS316L is suitable for most organic solvents, while highly corrosive acids or bases require Hastelloy or specialized cladding.

● Capacity & Throughput: Determine your required continuous processing volume (e.g., L/h or kg/h). Ensure the column diameter and reboiler capacity are correctly sized to handle the vapor velocity without flooding.

● Thermal Sensitivity: If processing heat-sensitive materials, opt for a vacuum system configuration to lower the boiling points and prevent thermal degradation.

Product Comparison

Why Choose Us

● Direct Factory Pricing: As the original manufacturer, we eliminate middlemen, offering highly competitive pricing without compromising on industrial-grade quality.

● Deep Customization Capability: From column internals to control logic, our engineering team tailors every detail to your specific continuous separation research and production needs.

● Industrial-Grade Reliability: Built with top-tier components (e.g., premium pumps, industrial PLCs, high-efficiency condensers) and rigorous factory testing, ensuring long-term stability for 24/7 continuous operation.

● Comprehensive After-Sales Support: We provide lifetime technical support, English video tutorials, and remote troubleshooting via video calls to ensure your production never stops.

● ISO-Certified Quality: Every unit undergoes strict pressure testing, leak detection, and temperature uniformity calibration before shipment, backed by our ISO quality management system.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: Why use multiple columns instead of a single column?

A: The continuous cascade across multiple columns allows a complex mixture to be precisely separated into multiple high-purity fractions, while a single column can only split the feed into two cuts.

Q2: How does the continuous distillation process work in this unit?

A: The feedstock is continuously metered and preheated before entering the primary column. Vapor rises through the plates or packing, undergoing repeated condensation and revaporization—light components are drawn continuously from the top condenser while heavy components are discharged from the bottom.

Q3: What construction materials are available?

A: The entire system is built from premium stainless steel: standard SS304/316L for most applications, with specialized alloys such as Hastelloy or 904L for highly corrosive environments or high-purity pharmaceutical requirements.

Q4: Can this unit handle heat-sensitive materials?

A: Yes. The unit integrates flawlessly with vacuum systems, which lower the boiling temperatures and protect heat-sensitive materials during separation.

Q5: How is product purity monitored during continuous operation?

A: The unit pairs with online analytical instruments such as GC for real-time purity monitoring, and can be linked with automated product fraction collectors for automated cut-point adjustment.
