Bearing Radial Clearance Measuring Instrument

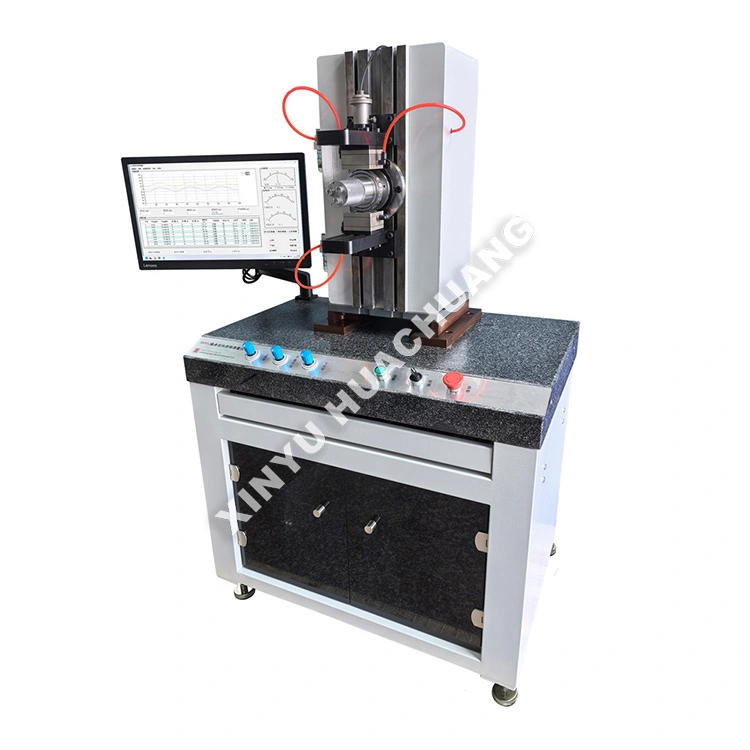

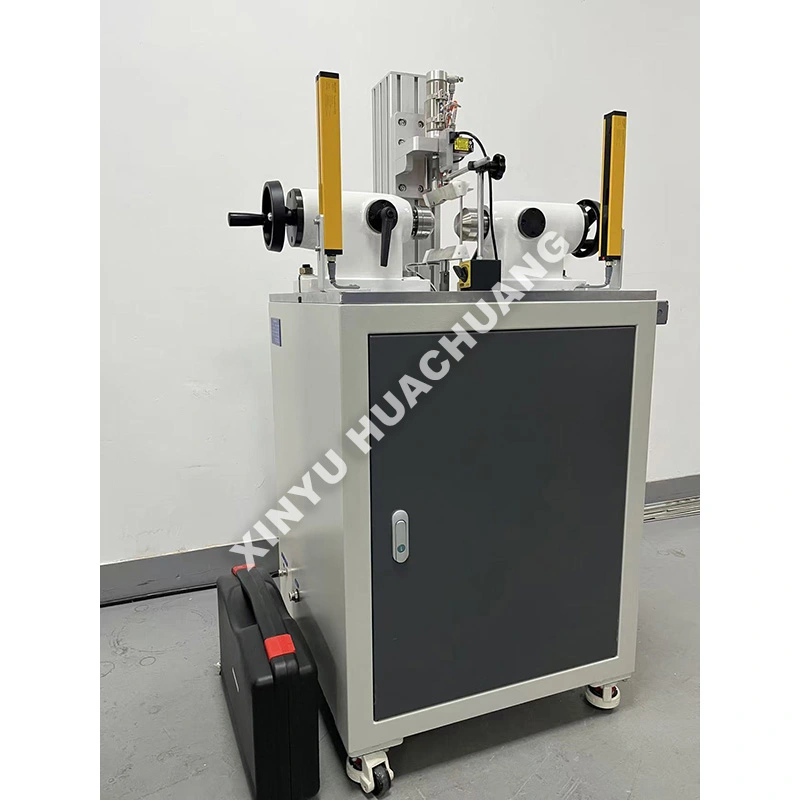

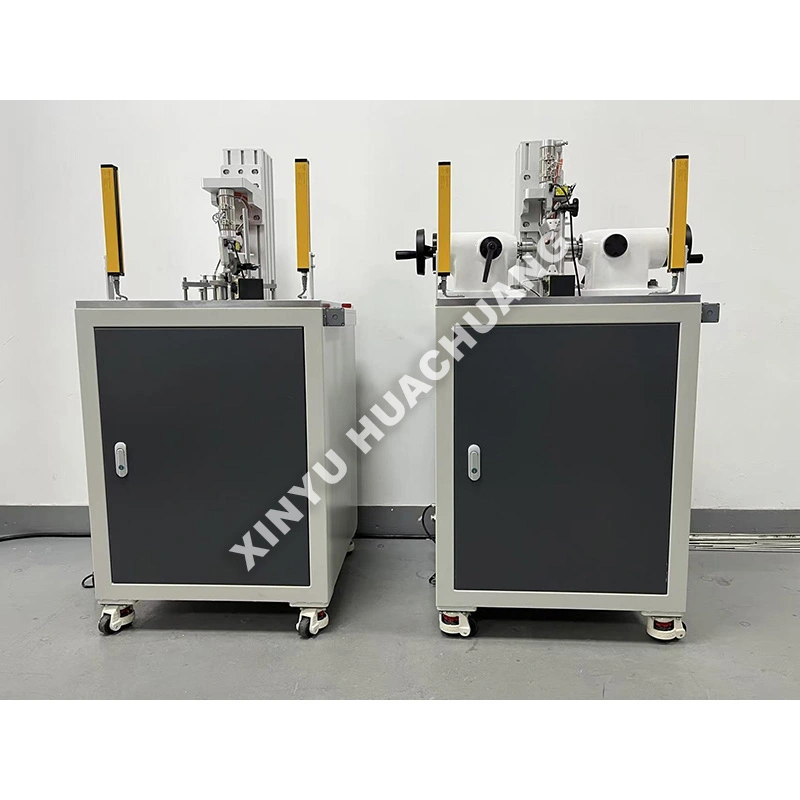

The XINYU HUACHUANG Bearing Radial Clearance Measuring Instrument is a highly accurate, semi-automated testing apparatus specifically engineered to evaluate the internal radial clearance of rolling bearings. Designed to meet strict international standards, this Bearing Radial Clearance Measuring Instrument precisely applies standardized measurement loads to capture micro-displacements. Equipped with intelligent PLC automation and high-sensitivity sensors, it ensures safe, reliable operation while delivering highly reproducible data for R&D, quality control, and manufacturing certification.

Working Principle

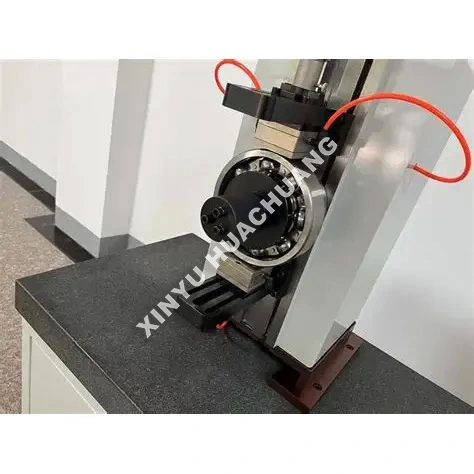

Bearing Radial Clearance Measuring Instrument operates on a dynamic, no-load measurement principle. The bearing's inner ring is fixed and rotated by a synchronous motor, while a precise measurement load is applied to the outer ring. High-sensitivity displacement sensors capture the radial movement of the rolling elements as they pass through the load zone. The system uses differential algorithms to automatically eliminate geometric errors and calculates the true radial clearance without requiring deformation compensation.

What are the distinctive advantages?

● High-Precision Measurement: Features premium inductive sensors with a static repeatability of <1.5μm and dynamic repeatability of <2.5μm.

● Automated Loading: Pneumatic or motorized loading ensures consistent, standardized measurement forces, eliminating manual operation errors.

● Intelligent Data Processing: Automatically calculates average clearance, identifies rotation jams, and generates SPC/CPK statistical reports.

● Robust & Safe Construction: Built with a rigid mechanical frame and features auto-calibration against standard reference parts to maintain long-term accuracy.

● Versatile Compatibility: Modular fixturing allows for quick changeovers to test various bearing types, from deep groove ball bearings to tapered roller bearings.

Technical Specifications

Where is it applicable?

● Bearing Manufacturing: 100% inline or offline quality inspection for deep groove ball, cylindrical roller, and tapered roller bearings.

● Automotive & Aerospace: Incoming quality control (IQC) and assembly verification for wheel hubs, gearboxes, and turbine engines.

● Precision Machinery: Clearance matching and pairing selection for high-precision machine tool spindles and robotics.

● Maintenance & MRO: Condition assessment and clearance evaluation of bearings during equipment overhauls.

Usage Precautions

● Sample Preparation: Always clean the bearing thoroughly to remove rust preventatives or grease that could affect the micro-measurement.

● Thermal Equilibrium: Allow both the instrument and the bearing to acclimate to the room temperature (20±5℃) before testing.

● Proper Alignment: Ensure the bearing is seated perfectly flat on the fixture to prevent false readings caused by outer ring tilt.

● Calibration: Run the auto-calibration routine using standard reference bearings at the beginning of each shift.

Maintenance Guide

● Daily: Wipe down the measurement fixtures and sensor stylus with a clean, lint-free cloth. Check the pneumatic air pressure (if applicable) and drain moisture from the filter.

● Weekly/Monthly: Inspect the rotating spindle and loading levers for smooth operation. Apply a drop of light machine oil to mechanical pivot points as recommended.

● Quarterly: Perform a full system calibration using certified standard clearance blocks to verify linearity and amplification accuracy.

● Environment Control: Keep the instrument away from heavy vibrating machinery, strong magnetic fields, and direct sunlight to maintain measurement stability.

Post-purchase protection details

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: What is radial clearance, and why does it matter for bearing performance?

A: Radial clearance is the total distance the bearing's inner ring can move radially relative to the outer ring when no external load is applied. Correct radial clearance is critical because too little clearance causes excessive friction, overheating, and premature failure, while too much clearance leads to vibration, noise, and reduced load-carrying capacity.

Q2: How does the dynamic no-load measurement principle work?

A: The instrument fixes the bearing's inner ring and rotates it via a synchronous motor while applying a precise measurement load to the outer ring. High-sensitivity displacement sensors capture the radial movement of the rolling elements as they pass through the load zone. Differential algorithms then automatically eliminate geometric errors such as out-of-roundness, delivering the true radial clearance value.

Q3: Why does the instrument use differential algorithms instead of direct measurement?

A: Bearings have inherent geometric imperfections—slight ovality, surface waviness, and dimensional variations in rolling elements—that can distort simple point measurements. The differential algorithm captures multiple data points around the full rotation and mathematically separates these geometric errors from the actual clearance, ensuring measurement accuracy without requiring deformation compensation.

Q4: What bearing types and sizes can this instrument measure?

A: The instrument accommodates deep groove ball bearings, angular contact bearings, cylindrical roller bearings, and tapered roller bearings across a wide size range. Adapters and fixtures can be configured to match specific bearing bore diameters and outer diameters, making it suitable for both production-line quality checks and laboratory inspection.

Q5: How does this instrument support bearing quality control in manufacturing?

A: By providing fast, accurate, and repeatable radial clearance measurements, the instrument enables 100% inspection of production batches or statistical sampling per ISO 5753 and ABMA standards. This ensures every bearing shipped meets the specified clearance group, reducing warranty claims and field failures caused by improper clearance.
