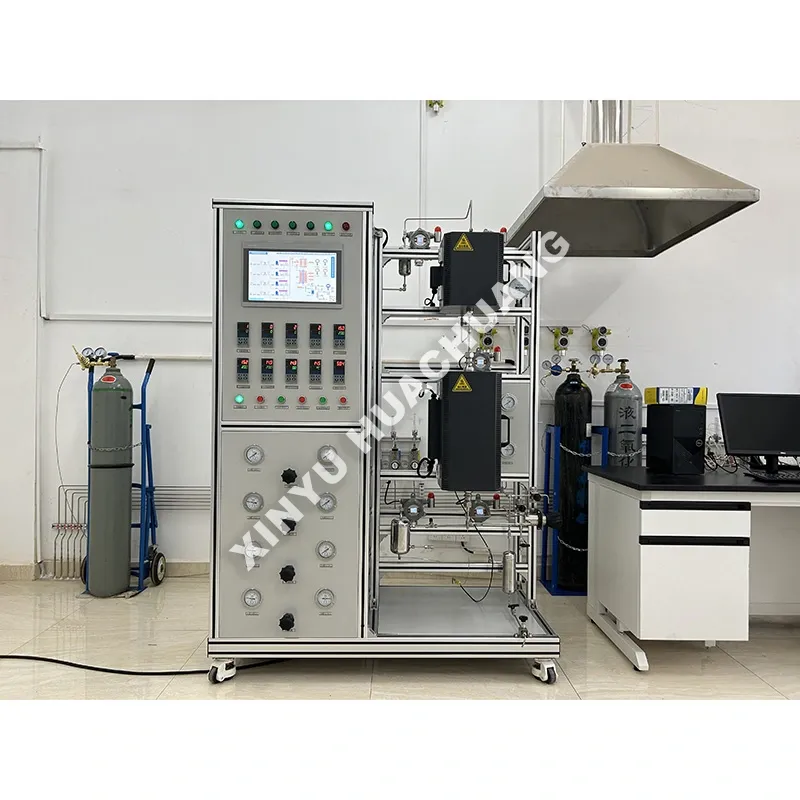

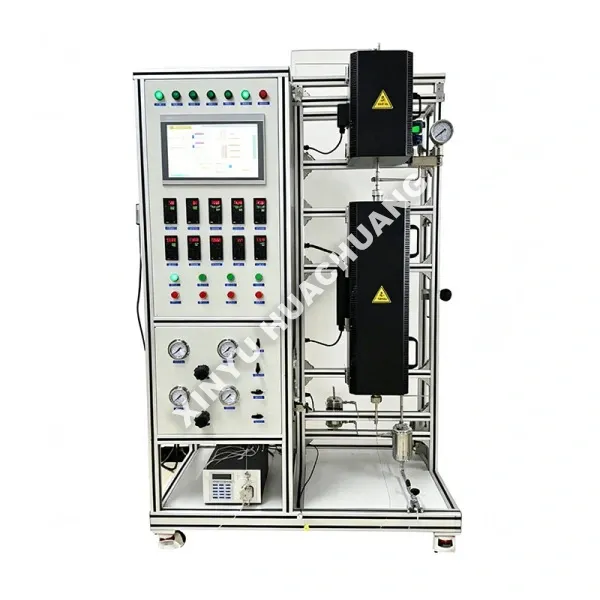

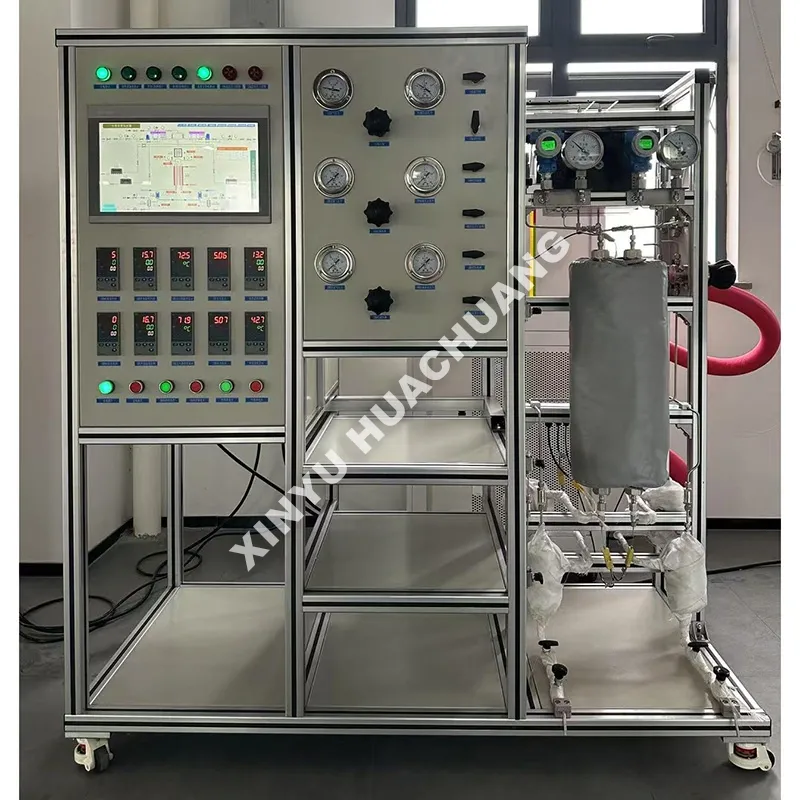

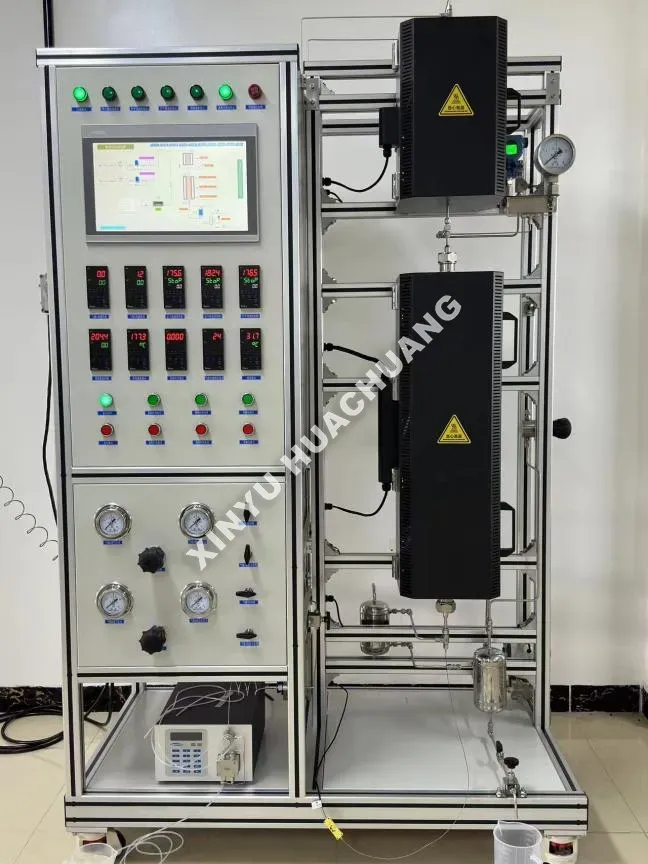

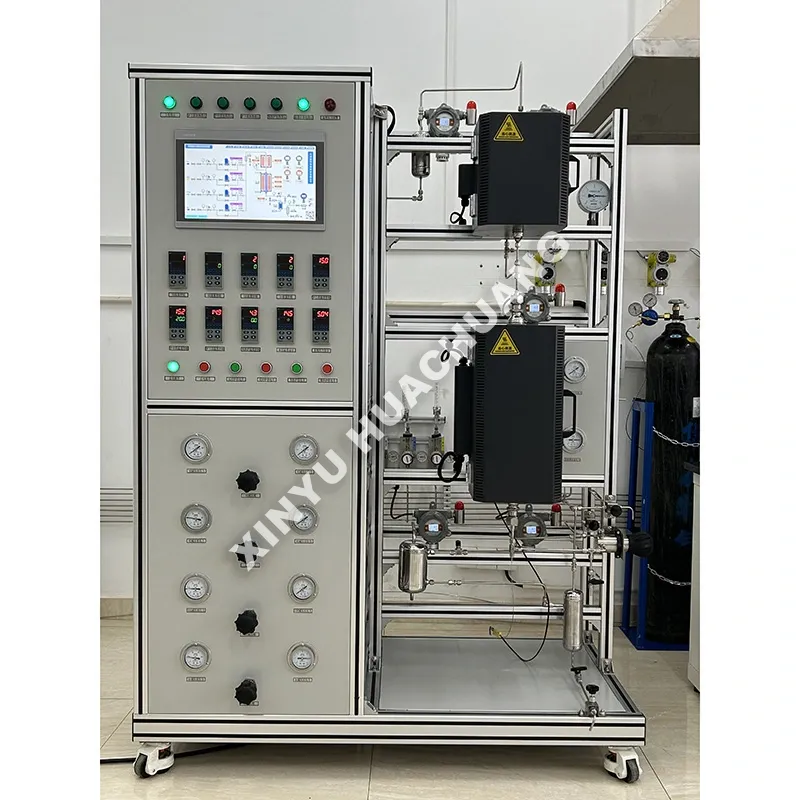

Catalyst Fixed-Bed Reaction Unit

The XINYU HUACHUANG Catalyst Fixed-Bed Reaction Unit is a highly automated laboratory reactor system engineered for precise heterogeneous catalysis research. Designed to simulate industrial gas-solid or liquid-solid reaction environments, it accurately controls temperature, pressure, and flow rates. Equipped with intelligent PLC automation and multi-level safety interlocks, this unit is ideal for catalyst screening, kinetic studies, and process scale-up in petrochemical, energy, and environmental fields.

What is a Catalyst Fixed-Bed Reaction Unit?

A Catalyst Fixed-Bed Reaction Unit is a specialized chemical testing apparatus where solid catalyst particles are packed into a stationary bed within a tubular reactor. Reactants (gas or liquid) are continuously passed through this fixed bed, where they adsorb onto the catalyst's active sites and undergo chemical conversion into products. The fluid flows steadily through the packed bed with minimal back-mixing, providing a highly stable environment to evaluate catalyst activity, selectivity, and lifespan under controlled conditions.

Technical Specifications

Key Features

● High Conversion & Selectivity: The plug-flow characteristic of the fixed bed ensures long contact time between reactants and catalysts, minimizing side reactions and maximizing target product yield.

● Low Catalyst Attrition: Since the catalyst bed remains completely stationary, there is virtually no mechanical wear or particle attrition, significantly extending catalyst life and reducing operating costs.

● Precise Multi-Zone Heating: Advanced multi-zone PID temperature controllers ensure an isothermal profile across the catalyst bed, eliminating hot spots and ensuring highly reproducible kinetic data.

● Modular & Customizable Design: Flexible configuration of preheaters, condensers, gas-liquid separators, and online analyzers (GC/MS) to meet specific experimental requirements.

● Industrial-Grade Safety: Equipped with automatic pressure relief valves, leak detectors, and emergency stop buttons to ensure safe operation during high-pressure hydrogenation or exothermic reactions.

Usage Precautions

● Proper Catalyst Loading: Always pack the catalyst evenly to avoid channeling (where gas bypasses the catalyst). Use inert quartz wool or ceramic balls at the top and bottom to support the bed and distribute gas flow.

● Pre-Heating & Purging: Always purge the system with an inert gas (e.g., N2 or Ar) before heating. Never heat the reactor without gas flow to prevent local overheating and catalyst damage.

● Condensation Prevention: If the reaction produces heavy hydrocarbons or water, ensure all downstream pipelines and valves are properly heat-traced (e.g., >150℃) to prevent condensation and blockages.

● Safe Shutdown: After the experiment, stop the liquid feed first, then continue flowing gas while cooling the reactor to room temperature before depressurizing.

Common Mistakes vs. Correct Methods

● Mistake: Heating the empty reactor or heating without gas flow. Correct Method: Always establish a stable gas flow before turning on the heater to ensure uniform heat transfer and protect the thermocouple.

● Mistake: Packing the catalyst too tightly or unevenly. Correct Method: Load the catalyst in small batches, gently tapping the reactor to ensure uniform density. Avoid excessive force to prevent crushing the catalyst pellets.

● Mistake: Ignoring pressure drop monitoring. Correct Method: Regularly monitor the inlet/outlet pressure gauge. A sudden increase in pressure drop indicates bed blockage or coking; reduce feed rate or regenerate the catalyst immediately.

● Mistake: Opening the system while under pressure. Correct Method: Always verify that the system pressure has returned to atmospheric levels and the temperature is below 50℃ before loosening any fittings.

Shipping & Packaging

● Professional Packaging: Catalyst Fixed-Bed Reaction Unit is securely packed in fumigation-free export-standard wooden crates. All sensitive instruments (MFCs, PLC panels) are wrapped in shock-proof foam and moisture-proof film.

● Component Fixation: Internal pipelines and reactors are firmly fixed with steel brackets to prevent damage during ocean or air freight.

● Documentation: A comprehensive English operation manual, electrical schematics, P&ID diagrams, and a packing list are included in a waterproof document pouch attached to the crate.

● Global Logistics: We support EXW, FOB, CIF, and DDP terms, providing door-to-door delivery services to laboratories and research facilities worldwide.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

FAQ

Q1: What are the primary advantages of using a Catalyst Fixed-Bed Reaction Unit for catalytic research?

A: The Catalyst Fixed-Bed Reaction Unit offers a simple structure and highly stable operation, making it ideal for continuous processing. Because the catalyst particles remain stationary, mechanical wear is minimized, significantly extending catalyst life. Additionally, the fluid flow approximates plug flow with minimal back-mixing, which provides excellent reaction selectivity and highly accurate kinetic data for R&D.

Q2: How does the system prevent "hot spots" or temperature runaway during strong exothermic reactions?

A: Temperature control is critical in fixed-bed systems. Our Catalyst Fixed-Bed Reaction Unit is equipped with multi-zone independent PID temperature control (preheating, reaction, and insulation zones) to ensure a uniform temperature profile. For highly exothermic reactions, we offer specialized heat-exchange reactor designs (such as multitubular reactors) and advanced safety interlocks that automatically halt feed or trigger emergency venting if bed temperatures exceed safe limits.

Q3: Can this unit handle different phases of reactants, and how is the feed system managed?

A: Yes, the unit is highly versatile. It can be configured for gas-solid, liquid-solid, or gas-liquid-solid (trickle bed) reactions. The feed system utilizes high-precision mass flow controllers (MFCs) for gases and pulse-free high-pressure metering pumps for liquids, ensuring exact stoichiometric ratios and stable flow rates, which are essential for reproducible experimental results.

Q4: What safety measures are in place for operations involving high temperature and high pressure?

A: Safety is our top priority. The Catalyst Fixed-Bed Reaction Unit features a robust, multi-level safety design combining hardware and software. It includes automatic nitrogen purging systems to prevent explosive gas mixtures, over-temperature and over-pressure alarms, and emergency shutdown protocols. The reactor body is constructed from premium high-temperature and high-pressure resistant alloys (e.g., SS316L, Hastelloy) to guarantee safe operation under extreme conditions.

Q5: How does the Industrial PLC + PC Software control system enhance the evaluation process?

A: The integrated Industrial PLC + PC Software architecture ensures fully automated control of heating, gas/liquid flow, and data logging, significantly reducing manual errors. The system provides real-time monitoring of critical parameters, automatic historical data recording, and trend curve generation. This intelligent data acquisition allows researchers to accurately track catalyst activity, conversion rates, and selectivity over long-term continuous testing.
