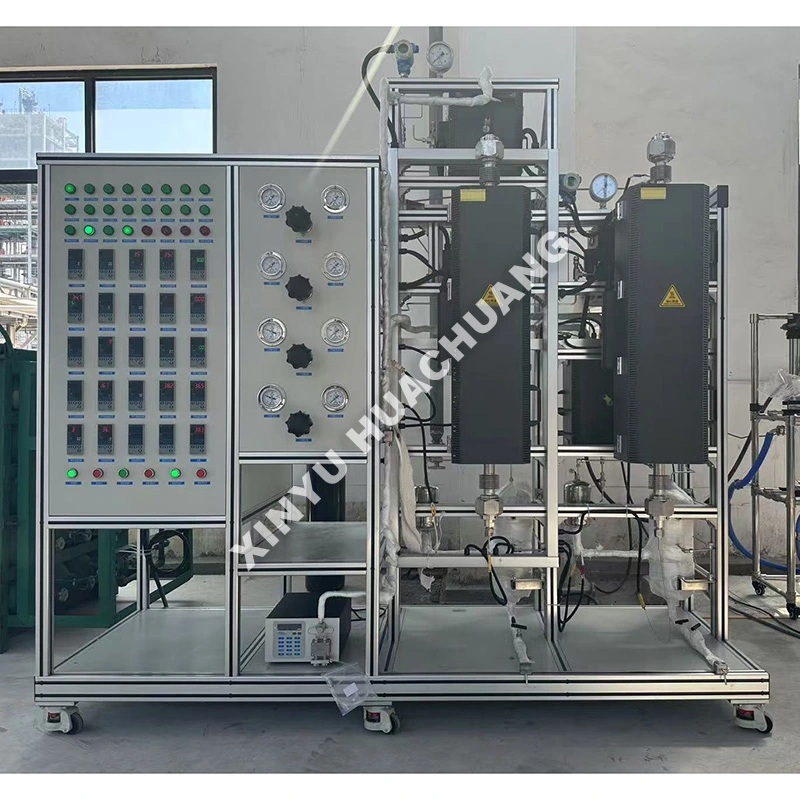

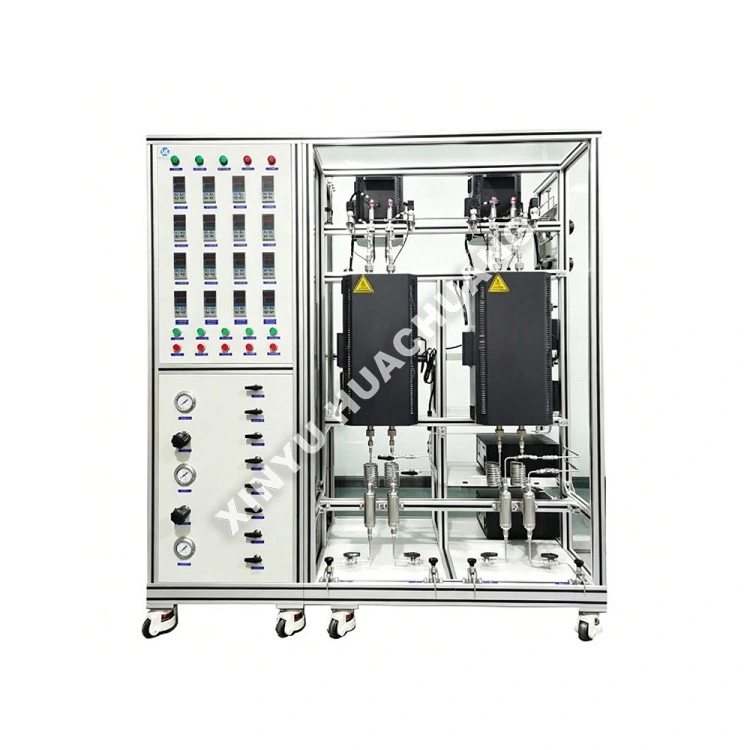

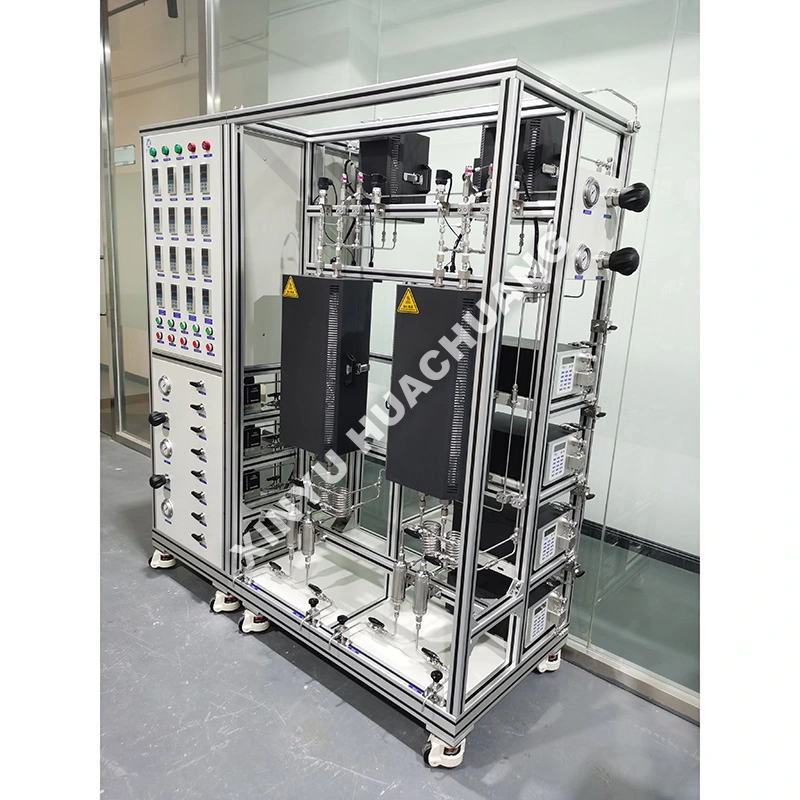

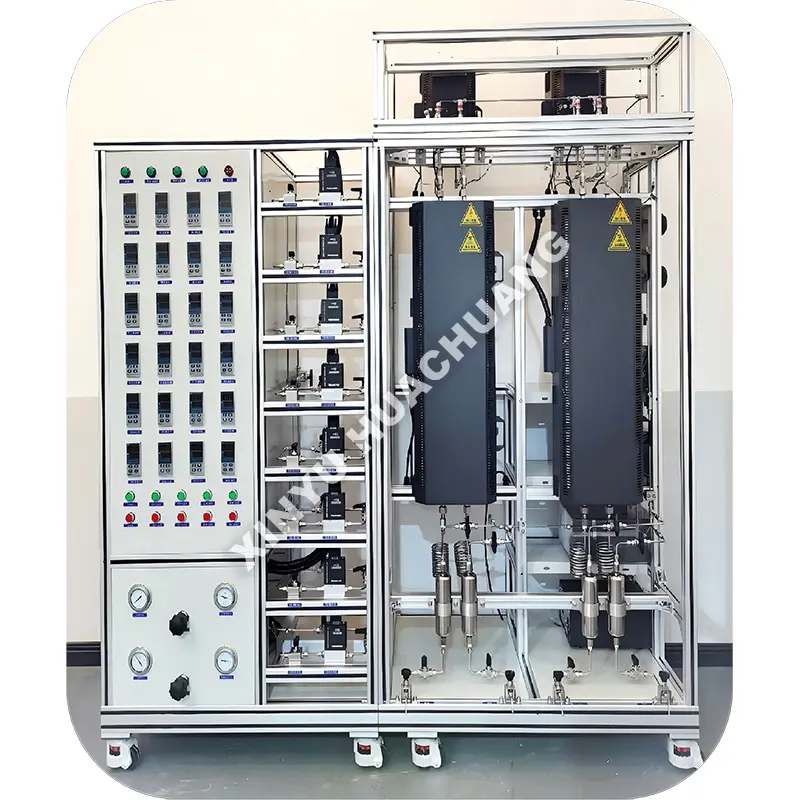

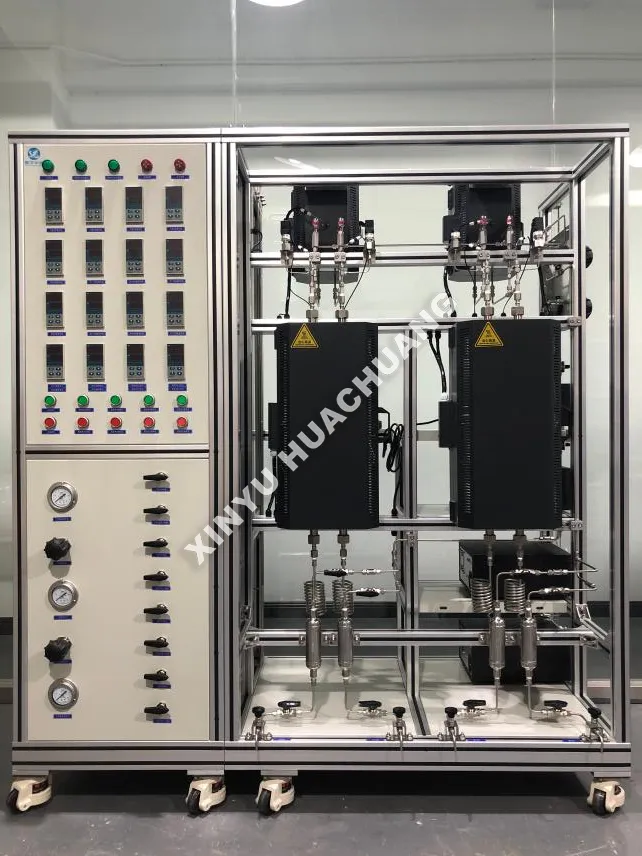

Four-Channel Evaluation Unit

The XINYU HUACHUANG Four-Channel Evaluation Unit is a high-efficiency laboratory reactor system designed to accelerate catalyst R&D and process optimization. Engineered with four independent reaction channels, it allows researchers to simultaneously test multiple catalyst formulations or varying operating conditions under identical parameters. Equipped with precise mass flow controllers, multi-zone heating, and intelligent PLC automation, this unit significantly reduces experimental cycles and ensures highly reproducible, comparable data for industrial scale-up.

What is a Four-Channel Evaluation Unit?

A Four-Channel Evaluation Unit is an advanced parallel testing apparatus that integrates four identical, independent reactor tubes into a single, unified system. Each channel is equipped with its own dedicated gas/liquid feeding lines, temperature sensors, and pressure controls, allowing for completely independent operation. This design enables researchers to conduct four separate experiments at the exact same time, or to test a single catalyst under four different conditions simultaneously, maximizing laboratory throughput and data reliability.

What are the distinctive advantages?

● 4x Testing Efficiency: The Four-Channel Evaluation Unit conducts four experiments simultaneously, reducing the time required for catalyst screening and optimization by up to 75% compared to single-channel units.

● Independent Channel Control: Each channel operates with its own MFCs and temperature zones, allowing flexible testing of different reaction parameters or catalysts without cross-interference.

● Guaranteed Data Comparability: All four reactors share the same heating furnace and gas source manifold, ensuring identical thermal and feed environments for fair and accurate catalyst comparison.

● Intelligent PLC Automation: Centralized PLC control manages all four channels, automating data logging, historical curve generation, and unattended long-term operation.

● Space & Cost Effective: Consolidating four reactors into one footprint saves valuable laboratory space and reduces overall utility consumption (power, gas, cooling water).

Technical Specifications

Application Areas

● Catalyst Screening: Rapid evaluation of new catalyst formulations, supports, and promoters in petrochemical and fine chemical synthesis.

● Process Optimization: Testing the effects of varying temperature, pressure, and space velocity (GHSV/LHSV) on catalyst performance.

● Deactivation & Lifetime Studies: Monitoring catalyst stability and coking behavior over extended periods under identical conditions.

● Kinetic Research: Gathering reliable kinetic data for reactor modeling and industrial scale-up design.

● Environmental Catalysis: Parallel testing of DeNOx, VOC oxidation, and hydrogenation catalysts for emission control.

From Inquiry to Operation-Our Six-Stage Build Cycle

1. Requirement Confirmation: Understand the client's specific testing needs, catalyst types, and operating parameters to customize the technical proposal.

2. Design & Engineering: Finalize CAD drawings, P&ID diagrams, and electrical schematics for the four-channel system.

3. Precision Manufacturing: CNC machining of reactor components, assembly of the gas/liquid feeding manifold, and fabrication of the PLC control cabinet.

4. Factory Testing: Strict pressure testing, temperature uniformity calibration across all four channels, and PLC logic debugging.

5. Packaging & Shipping: Export-standard fumigation-free wooden crate packaging with secure internal fixation for global logistics.

6. Installation & Support: Provide comprehensive English manuals, video installation guides, and free online technical support for seamless operation.
