Gas Low-Temperature Pressurized Distillation Unit

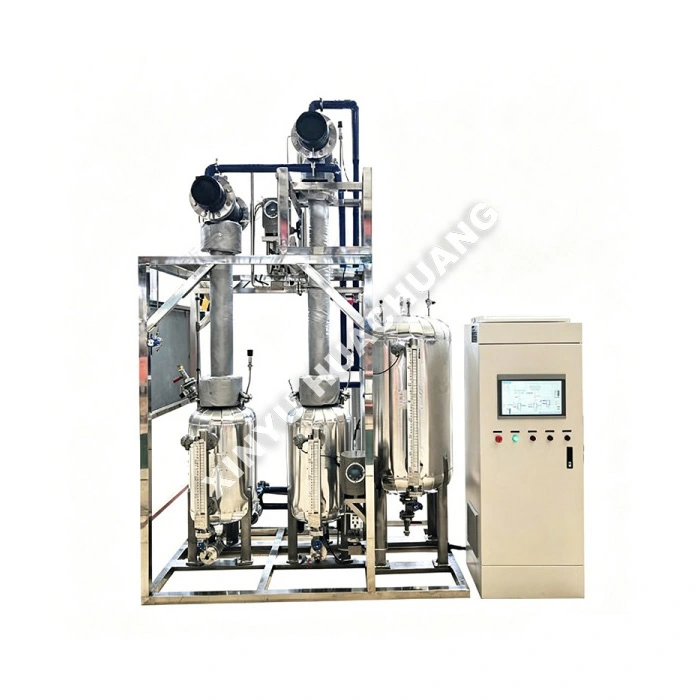

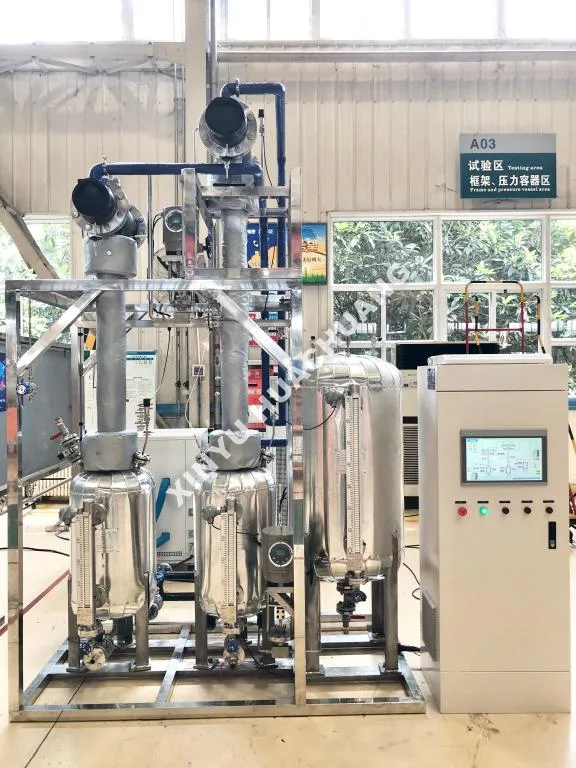

The XINYU HUACHUANG Gas Low-Temperature Pressurized Distillation Unit is an advanced, all-in-one separation system specifically engineered for the high-precision purification of complex gas mixtures. Designed to leverage the differences in boiling points and relative volatilities of various components, this Gas Low-Temperature Pressurized Distillation Unit operates under low-temperature and high-pressure conditions to achieve superior multi-stage vapor-liquid mass transfer. The entire system is built on a robust stainless-steel skid, integrating the distillation column, condensers, reboilers, refrigeration units, compressors, and an intelligent PLC control system. This compact, modular design ensures easy installation, seamless relocation, and reliable performance for demanding industrial and research applications.

Working Principle

The Gas Low-Temperature Pressurized Distillation Unit operates on the fundamental principles of cryogenic fractional distillation. The multi-component gas mixture is compressed and pre-cooled before entering the distillation column. Inside the column, the low-temperature, high-pressure environment facilitates continuous vapor-liquid contact across multiple theoretical plates or packing layers. Components with higher boiling points condense into liquid and flow downward, while lighter components with lower boiling points vaporize and rise to the top. This precise multi-stage mass transfer effectively separates the target gas from impurities. The integrated refrigeration cycle provides the necessary cooling capacity, while the reboiler supplies the heat required for vaporization, all coordinated seamlessly by the PLC control system.

What are the distinctive advantages?

● Modular Skid-Mounted Design: All core components are integrated onto a stainless-steel base, resulting in a highly compact footprint, simplified on-site installation, and the flexibility for overall relocation.

● High-Precision Separation: Operates under optimized low-temperature and high-pressure conditions to maximize relative volatility, ensuring high-purity recovery of target gases.

● Intelligent PLC Automation: Features a fully automated control system that precisely regulates temperature, pressure, and flow rates, significantly reducing manual intervention and ensuring stable long-term operation.

● Robust Construction: Manufactured with premium stainless steel to resist corrosion and withstand cryogenic temperatures, guaranteeing equipment longevity and product purity.

● Turnkey Solution: Integrates compressors, refrigeration, heat exchangers, and valves into a single unit, eliminating the need for complex on-site piping and reducing project lead times.

Technical Specifications

Where does it apply?

● Electronic Specialty Gases: High-purity purification of electronic-grade gases for semiconductor manufacturing.

● Refrigerant Recovery & Regeneration: Efficient separation and recycling of mixed refrigerants for environmental compliance.

● Light Hydrocarbon Separation: Precise fractionation of C2-C4 hydrocarbons in petrochemical processing.

● Industrial Waste Gas Resource Recovery: Valorization of industrial exhaust streams by extracting valuable chemical components.

Usage Precautions

● Pre-Start Purging: Always perform a thorough nitrogen purge before introducing the feed gas to eliminate oxygen and moisture, preventing ice blockages or safety hazards.

● Thermal Equilibrium: Allow the refrigeration system to reach the target low-temperature baseline before introducing the feed gas to prevent thermal shock to the column internals.

● Pressure Monitoring: Continuously monitor the high-pressure sections and ensure safety relief valves are calibrated and unobstructed.

● Feed Gas Quality: Ensure the feed gas is pre-filtered to remove particulates and liquid droplets that could foul the distillation packing or trays.

Maintenance Guide

● Daily: Inspect the PLC interface for any abnormal alarms, check the sight glasses for proper liquid levels, and verify that there are no visible gas or refrigerant leaks.

● Weekly/Monthly: Check the lubricating oil level and condition of the circulation compressor. Inspect the refrigeration unit's condenser coils for dust accumulation and clean if necessary.

● Quarterly: Calibrate critical pressure and temperature transmitters to ensure the PLC is receiving accurate data. Inspect safety relief valves and perform a manual actuation test.

● Annually: Schedule a comprehensive shutdown to inspect the internal condition of the distillation column, clean the reboiler and condenser heat exchange surfaces, and verify the integrity of all cryogenic valves and gaskets.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: How does the Gas Low-Temperature Pressurized Distillation Unit achieve gas separation at the fundamental level?

A: The unit operates on cryogenic fractional distillation. The multi-component gas mixture is first compressed and pre-cooled, then enters the distillation column where a low-temperature, high-pressure environment enables continuous vapor-liquid contact. Components with higher boiling points condense into liquid and flow downward, while lighter components vaporize and rise to the top—achieving precise separation through multi-stage mass transfer.

Q2: Why is the gas mixture compressed and pre-cooled before entering the distillation column?

A: Compression raises the gas pressure, which shifts the vapor-liquid equilibrium and increases the liquefaction temperature of each component. Pre-cooling then brings the mixture closer to its dew point before it enters the column. Together, these steps reduce the refrigeration load inside the column and improve overall separation efficiency.

Q3: What role does the integrated refrigeration cycle play in the distillation process?

A: The integrated refrigeration cycle provides the necessary cooling capacity to maintain the low-temperature environment inside the column. Without this continuous cooling, the condensed liquid would re-vaporize and the mass transfer process would break down. The refrigeration cycle works in tandem with the reboiler to sustain the precise thermal gradient required for effective separation.

Q4: How does the reboiler contribute to the separation process?

A: The reboiler supplies the heat required for vaporization at the bottom of the distillation column. By partially re-vaporizing the liquid flowing downward, it generates the rising vapor stream that drives the counter-current mass transfer across the theoretical plates or packing layers. This continuous vapor-liquid exchange is what progressively enriches each component in its respective zone.
