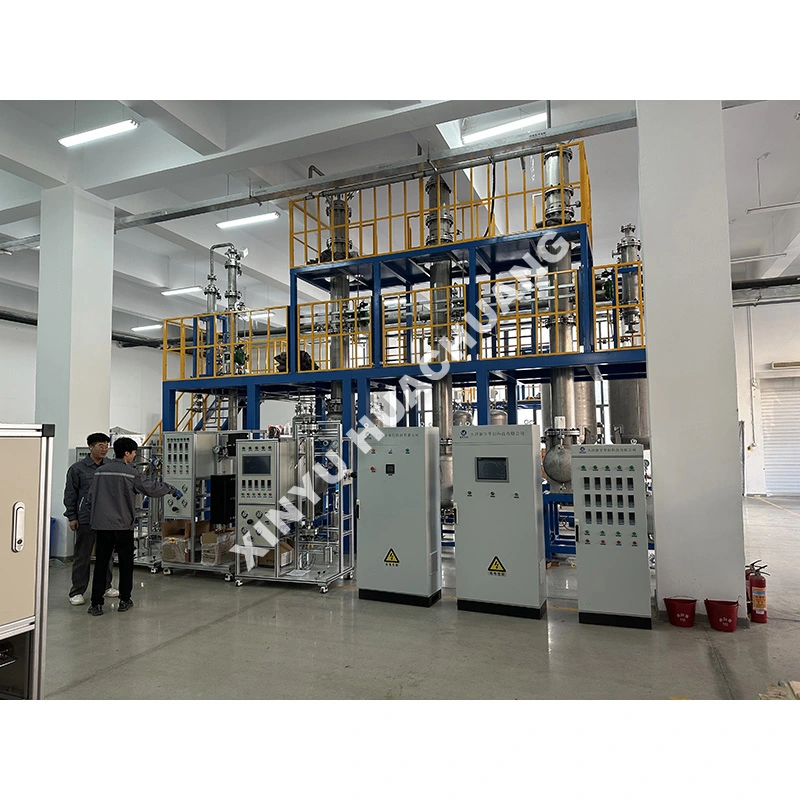

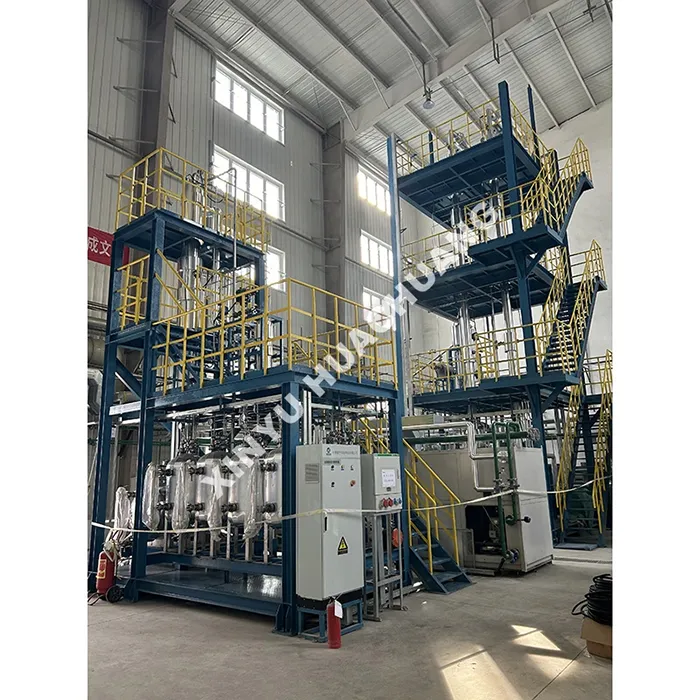

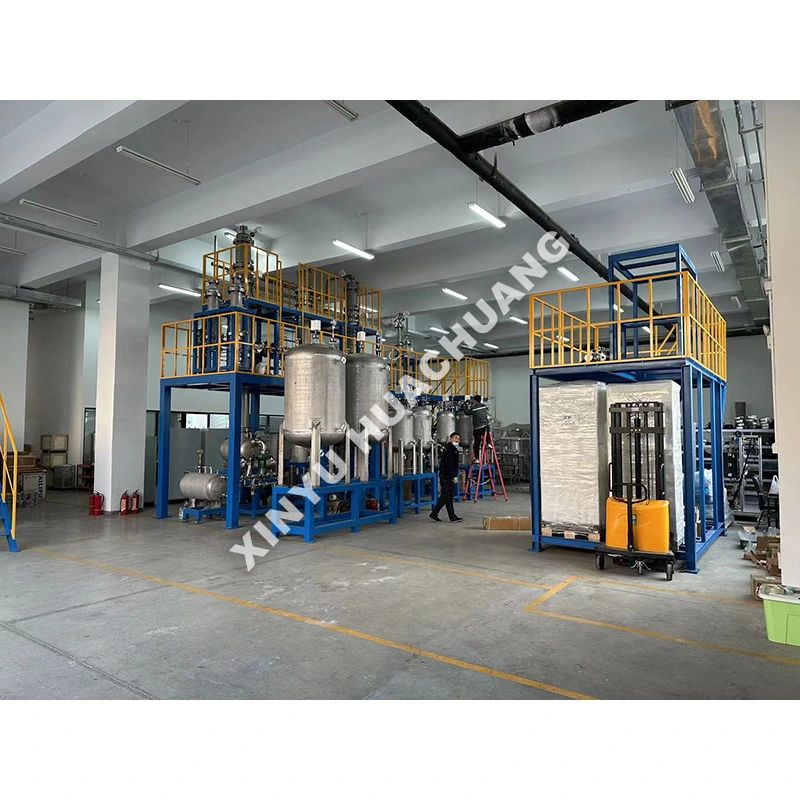

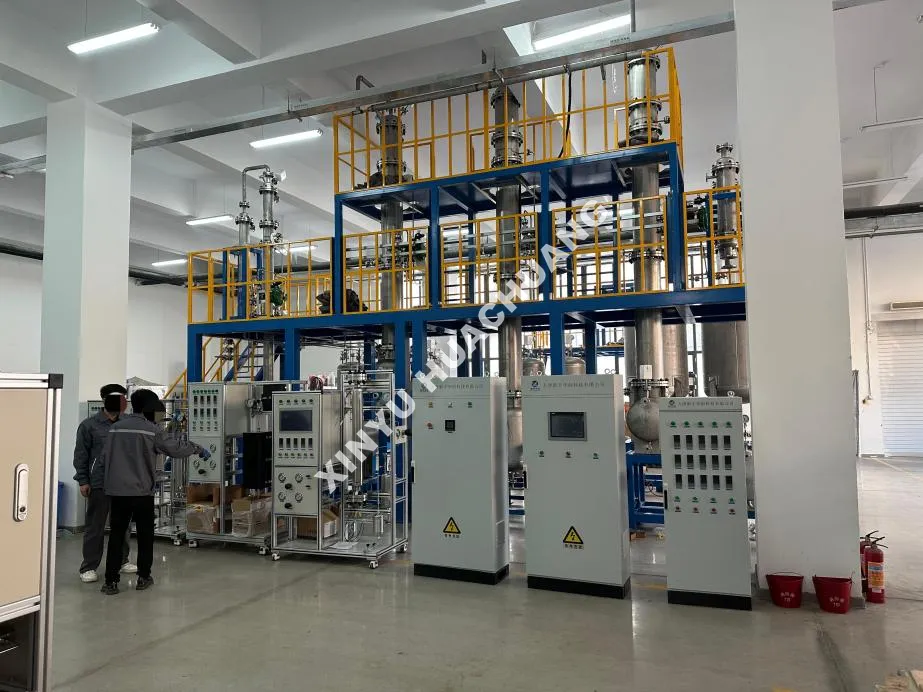

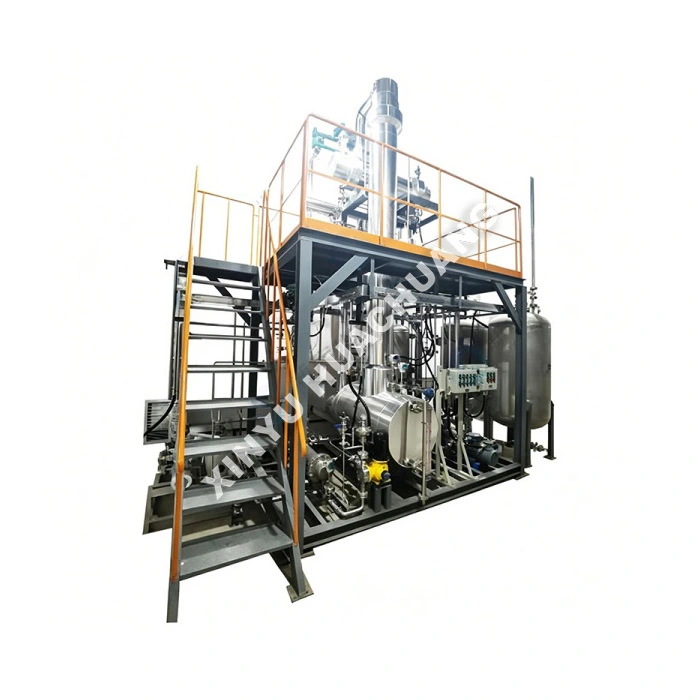

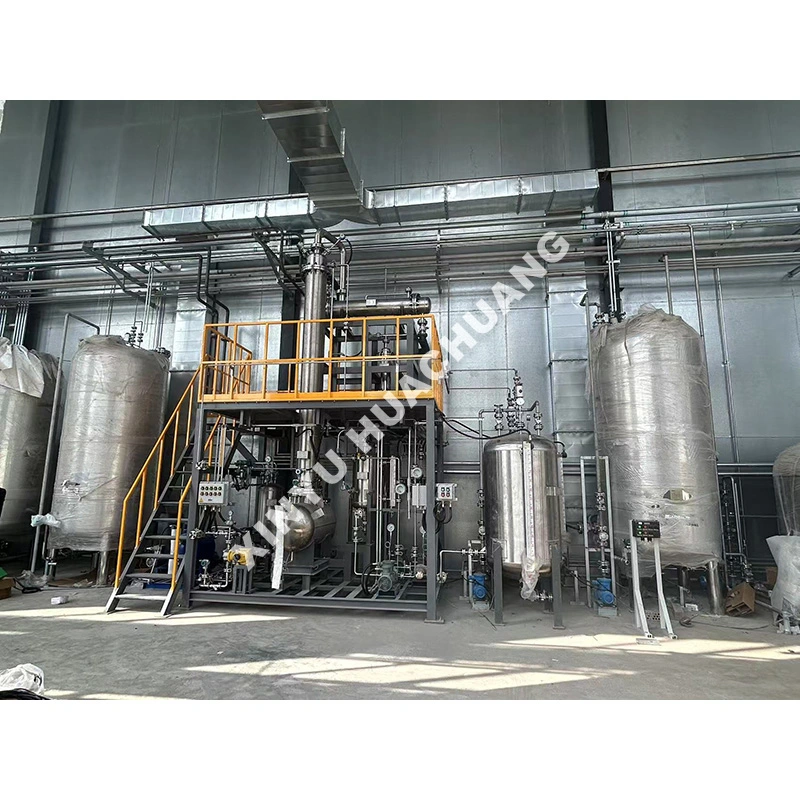

High-Vacuum Four-Column Continuous Distillation Unit

The XINYU HUACHUANG High-Vacuum Four-Column Continuous Distillation Unit is an advanced, industrial-grade separation system specifically engineered for the continuous fractionation of heat-sensitive, high-boiling, and complex multi-component liquid mixtures. Designed to maximize separation efficiency while minimizing thermal degradation, this unit utilizes a four-stage continuous distillation configuration under deep vacuum conditions. Equipped with intelligent PLC automation, automated reflux ratio control, and multi-level safety interlocks, the Unit ensures stable, unattended long-term operation while delivering highly reproducible purity data for commercial production and process optimization.

Operating Mechanism

The High-Vacuum Four-Column Continuous Distillation Unit operates on a continuous fractional distillation principle under deep vacuum. The liquid feedstock is continuously metered into the primary column. The deep vacuum significantly lowers the boiling points of the components, preventing thermal cracking and polymerization. As the mixture is heated in the reboiler, vapor rises through the column internals (structured packing or high-efficiency trays), undergoing repeated condensation and revaporization. The four-column cascade allows for the precise separation of complex mixtures into multiple high-purity fractions. Light components are continuously drawn from the top of the first column, intermediate fractions are collected from subsequent columns, and heavy residues are discharged from the final reboiler. The entire continuous process is meticulously managed by the High-Vacuum Four-Column Continuous Distillation Unit to maintain precise thermal gradients and optimal separation efficiency.

Where Does It Shine?

● Four-Column Precision Separation: The multi-stage cascade design allows for the simultaneous separation of up to four distinct product fractions from a single feedstock, maximizing product yield and purity.

● Deep Vacuum Protection: Operating under high vacuum (down to 10 Pa) significantly lowers boiling points, making it ideal for processing heat-sensitive materials, polymers, and high-boiling compounds without thermal degradation.

● High-Efficiency Internals: Features customizable structured packing or high-performance trays to achieve high theoretical plate numbers and PPM-level separation purity.

● Intelligent PLC Automation: Centralized control system enables unattended long-term operation, automated reflux ratio adjustment, and real-time data logging for temperature, pressure, and flow rates.

● Robust & Safe Construction: Built with premium metallurgy (e.g., SS316L, Hastelloy) and multi-level safety interlocks (over-temperature, over-pressure, dry-heating protection) to ensure safe operation.

Technical Specifications

Where is it applicable?

● Fine Chemicals & Pharmaceuticals: Continuous purification of heat-sensitive active pharmaceutical ingredients (APIs) and high-value intermediates.

● Polymer & Resin Processing: Separation of monomers, oligomers, and high-boiling solvents in polymer synthesis.

● Essential Oils & Natural Extracts: Gentle, continuous separation of delicate terpenes, fragrances, and plant extracts.

● Specialty Solvents: Ultra-high purification of high-boiling or thermally unstable organic solvents.

● Food & Beverage: Concentration of natural flavors, alcohol purification, and extraction of bioactive compounds.

Usage Precautions

● Vacuum System Maintenance: Ensure the vacuum system (pumps, condensers, traps) is operating stably before introducing feedstock. Fluctuations in vacuum will cause boiling point variations and compromise separation efficiency.

● Gradual Heating: Utilize the PLC's programmable heating ramp rates to prevent sudden vaporization and column flooding, especially during system startup under vacuum.

● Cooling Before Shutdown: Always stop the feed and maintain vacuum and cooling water flow until the system temperature drops below 80℃ to prevent residual product from degrading in the hot reboiler.

● Leak Detection: Regularly inspect all vacuum seals, gaskets, and flanges for leaks. Even minor air ingress can disrupt the vacuum level and introduce oxygen, leading to product oxidation.

Maintenance Guide

● Daily: Check the vacuum level, cooling water flow, and heating medium temperature. Inspect the system for any unusual noises, leaks, or vibrations from the pumps and compressors.

● Weekly/Monthly: Clean or replace feedstock pre-filters to prevent heavy residues from fouling the column packing. Inspect all PTFE gaskets and mechanical seals for wear and replace if necessary.

● Quarterly: Calibrate temperature sensors, vacuum gauges, mass flow controllers, and reflux ratio controllers to maintain separation accuracy. Inspect the heating system for uniform performance.

● Post-Operation: Always follow a proper shutdown sequence: stop the feed, maintain reflux to clear the column, and cool the system under vacuum before draining and storing to prevent oxidation or moisture absorption.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: Why does this unit operate under deep vacuum rather than atmospheric pressure?

A: Deep vacuum significantly lowers the boiling points of the components in the mixture. This prevents thermal cracking and polymerization that would occur at higher temperatures, making the unit essential for separating heat-sensitive compounds such as high-boiling organic intermediates, natural extracts, and polymer monomers.

Q2: How does the four-column cascade achieve precise separation of complex mixtures?

A: Each column in the cascade handles a specific separation task. Light components are continuously drawn from the top of the first column, intermediate fractions are collected from the subsequent columns, and heavy residues are discharged from the final reboiler. This staged approach allows complex mixtures to be precisely separated into multiple high-purity fractions in a single continuous operation.

Q3: What types of column internals are used in this high-vacuum unit?

A: The columns are equipped with structured packing or high-efficiency trays. As vapor rises through these internals, it undergoes repeated condensation and revaporization, progressively enriching the target fractions. The choice between packing and trays depends on the specific separation requirements and the physical properties of the feedstock.

Q4: How does the unit maintain precise thermal gradients across all four columns?

A: The entire continuous process is meticulously managed by the unit's integrated control system, which precisely regulates reboiler temperatures, condenser duties, and vacuum levels in each column. This ensures that the optimal thermal gradient is maintained in every column simultaneously, delivering consistent separation efficiency and product purity.

Q5: What makes this unit different from a standard two-column distillation system?

A: A standard two-column system can only split a feed into a limited number of cuts. The four-column cascade provides significantly more separation stages, enabling the precise fractionation of complex mixtures into four or more distinct product streams. This is critical when the feedstock contains multiple valuable components that each need to be recovered at high purity.
