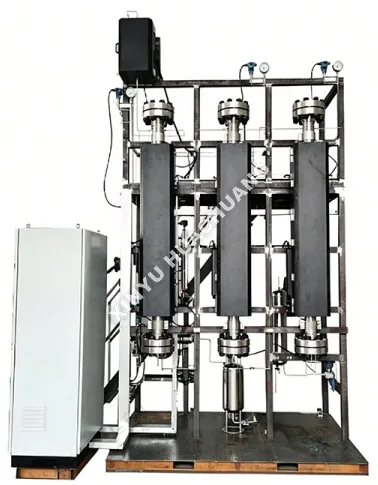

Tar Hydrogenation Reaction Pilot Unit

The XINYU HUACHUANG Tar Hydrogenation Reaction Pilot Unit is an advanced, highly automated testing system specifically engineered to tackle the challenges of processing heavy, high-viscosity feedstocks. Designed to bridge the gap between laboratory research and industrial scale-up, this unit accurately simulates real-world hydroprocessing environments with precise control over temperature, pressure, and hydrogen-to-oil ratios. Equipped with intelligent PLC automation and multi-stage fixed-bed reactors, the Tar Hydrogenation Reaction Pilot Unit ensures safe, continuous operation while delivering highly reproducible data for catalyst screening, deep desulfurization, and denitrification. It is the ideal platform for optimizing clean fuel production and maximizing the added value of complex tar resources.

What is a Tar Hydrogenation Reaction Pilot Unit?

A Tar Hydrogenation Reaction Pilot Unit is a specialized, continuous-flow chemical testing apparatus designed to upgrade low-value heavy tars (such as coal tar, ethylene tar, or pyrolysis tar) into high-quality liquid fuels and chemical feedstocks. The system operates by mixing the tar feedstock with high-pressure hydrogen and passing it through a series of heated catalytic reactors. Inside the reactor beds, complex reactions including hydrodesulfurization (HDS), hydrodenitrification (HDN), and aromatic ring saturation take place. The unit typically features a multi-stage reactor design (e.g., guard bed, hydrotreating bed, and hydrocracking bed) to prevent catalyst fouling from heavy asphaltenes and metals, ultimately yielding clean naphtha, diesel, and wax fractions.

What are the distinctive advantages?

● Industrial-Grade Simulation: Accurately replicates pilot-scale trickle-bed or fixed-bed hydroprocessing conditions, providing reliable kinetic data for commercial scale-up.

● Multi-Stage Reactor Design: Features customizable multi-zone reactors with inter-bed quenching to manage exothermic reactions, prevent hot spots, and extend catalyst life.

● Anti-Fouling & Protection: Integrated pre-treatment and guard bed systems effectively capture mechanical impurities, metals, and heavy asphaltenes, protecting downstream active catalysts.

● Intelligent PLC Automation: Centralized control system enables unattended long-term operation, automated data logging, and real-time monitoring of critical parameters.

● Robust & Safe Construction: Built with high-pressure safety interlocks, leak detection, and premium metallurgy (e.g., SS316L, Hastelloy) to safely handle corrosive environments and extreme operating conditions.

Technical Specifications

Application Areas

● Coal Chemical Industry: Deep hydro-upgrading of high-temperature and low-temperature coal tar to produce clean diesel and naphtha blending components.

● Petrochemicals: Valorization of ethylene tar and steam-cracker tar into high-value fuel oils and aromatics.

● Biomass & Waste Processing: Hydrotreating of pyrolysis bio-oil and plastic-derived tar to remove oxygen and stabilize the fuel.

● Catalyst R&D: Screening and lifetime evaluation of guard catalysts, hydrotreating (HDS/HDN), and hydrocracking catalysts.

● Process Optimization: Studying the effects of temperature, pressure, LHSV, and H2/oil ratio on product yield and quality.

From Concept to Crate: Our End-to-End Build Cycle

1. Requirement Confirmation: Understand the client's specific tar feedstock properties, target products, and operating parameters to customize the technical proposal.

2. Design & Engineering: Finalize CAD drawings, P&ID diagrams, and electrical schematics for the multi-stage hydrogenation system.

3. Precision Manufacturing: CNC machining of high-pressure reactor vessels, assembly of the heated feed manifold, and fabrication of the PLC control cabinet.

4. Factory Testing: Strict hydrostatic pressure testing, temperature uniformity calibration, and comprehensive PLC logic debugging.

5. Packaging & Shipping: Export-standard fumigation-free wooden crate packaging with secure internal fixation for global logistics.

6. Installation & Support: Provide comprehensive English manuals, video installation guides, and free online technical support for seamless operation.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: What types of tar feedstocks can the Tar Hydrogenation Reaction Pilot Unit process?

A: The unit is designed to upgrade low-value heavy tars such as coal tar, ethylene tar, and pyrolysis tar. Its continuous-flow system converts these feedstocks into high-quality liquid fuels and chemical raw materials.

Q2: What reactions take place inside the pilot unit?

A: Inside the heated catalytic reactor beds, the tar is mixed with high-pressure hydrogen and undergoes hydrodesulfurization (HDS), hydrodenitrification (HDN), and aromatic ring saturation. These are the key reactions that turn crude tar into clean, high-value fractions.

Q3: How does the multi-stage reactor design protect the catalysts?

A: The unit typically adopts a multi-stage layout of guard bed, hydrotreating bed, and hydrocracking bed. The guard bed captures heavy asphaltenes and metals before they reach the downstream beds, preventing catalyst fouling and supporting stable long-term runs.

Q4: What end products can we expect from the tar hydrogenation process?

A: After passing through the multi-stage catalytic system, the tar feedstock is converted into clean naphtha, diesel, and wax fractions, turning low-value tar into marketable fuels and chemical feedstocks.

Q5: Is this unit suitable for continuous pilot operation rather than batch testing?

A: Yes. As a specialized continuous-flow chemical testing apparatus, it runs steadily with tar continuously fed and mixed with high-pressure hydrogen, providing reliable scale-up data before full industrial implementation.
