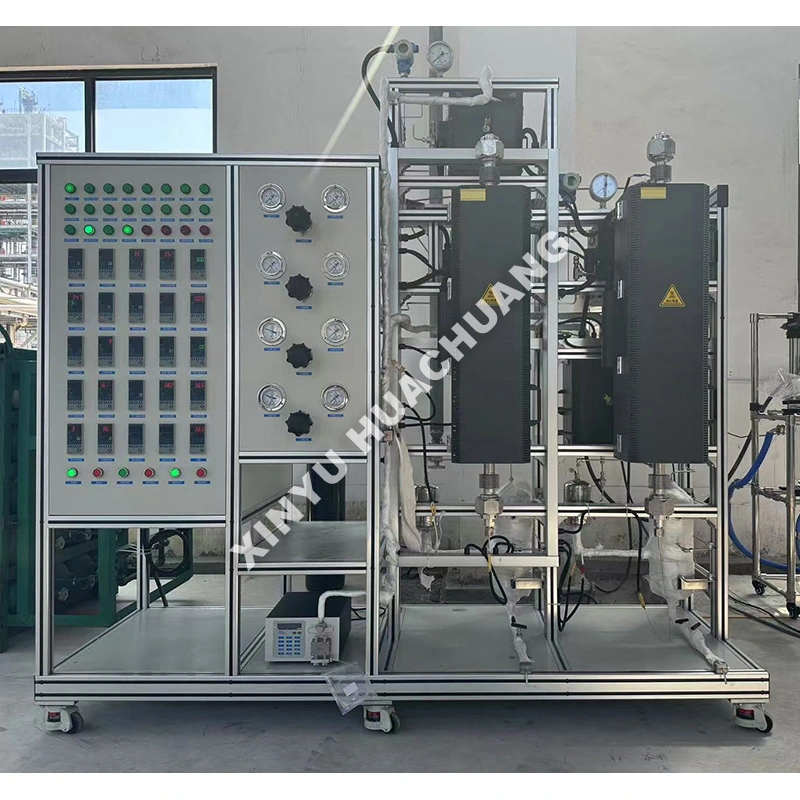

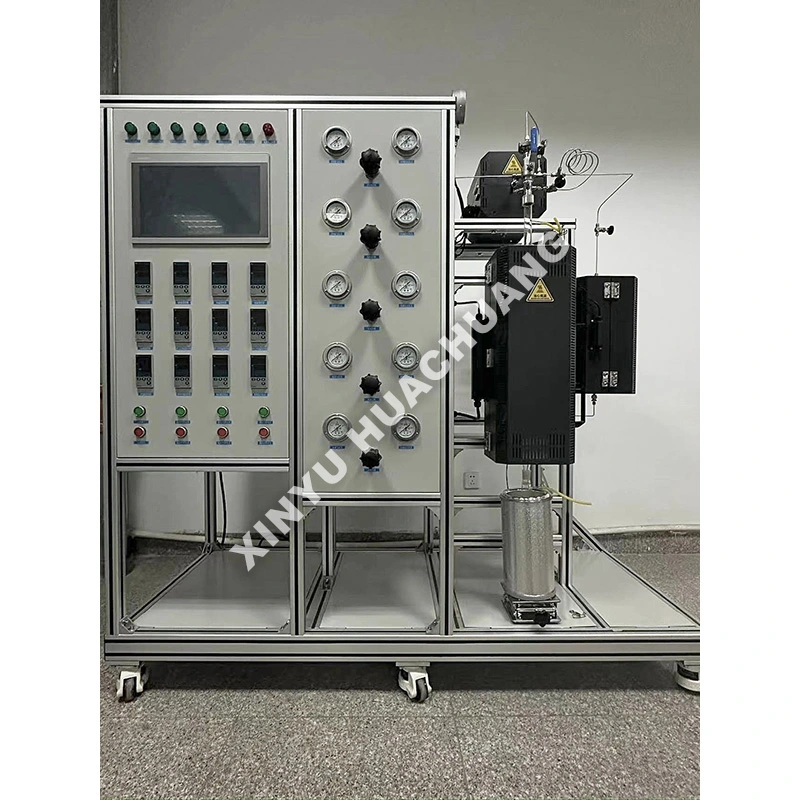

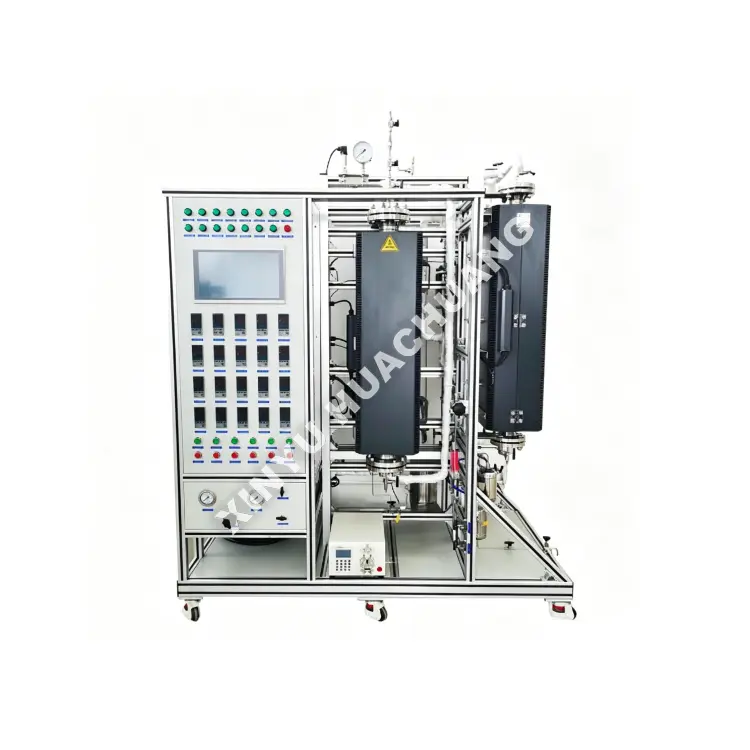

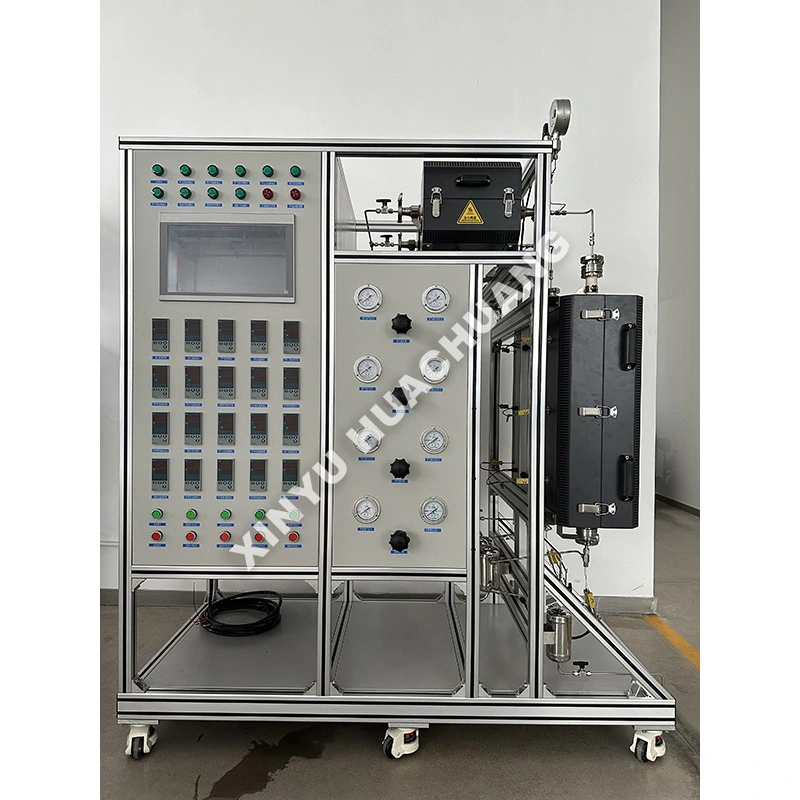

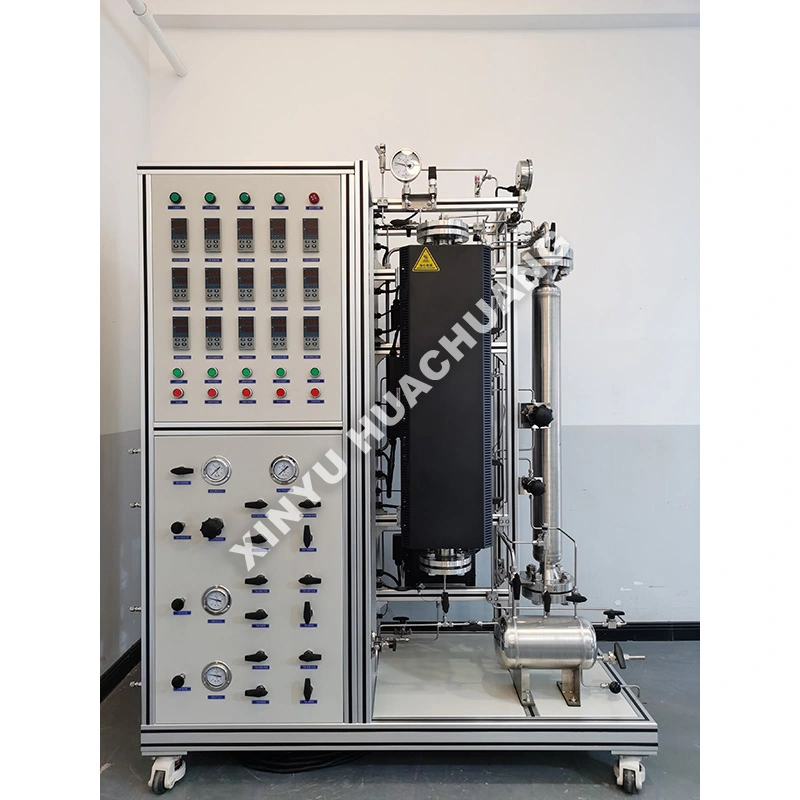

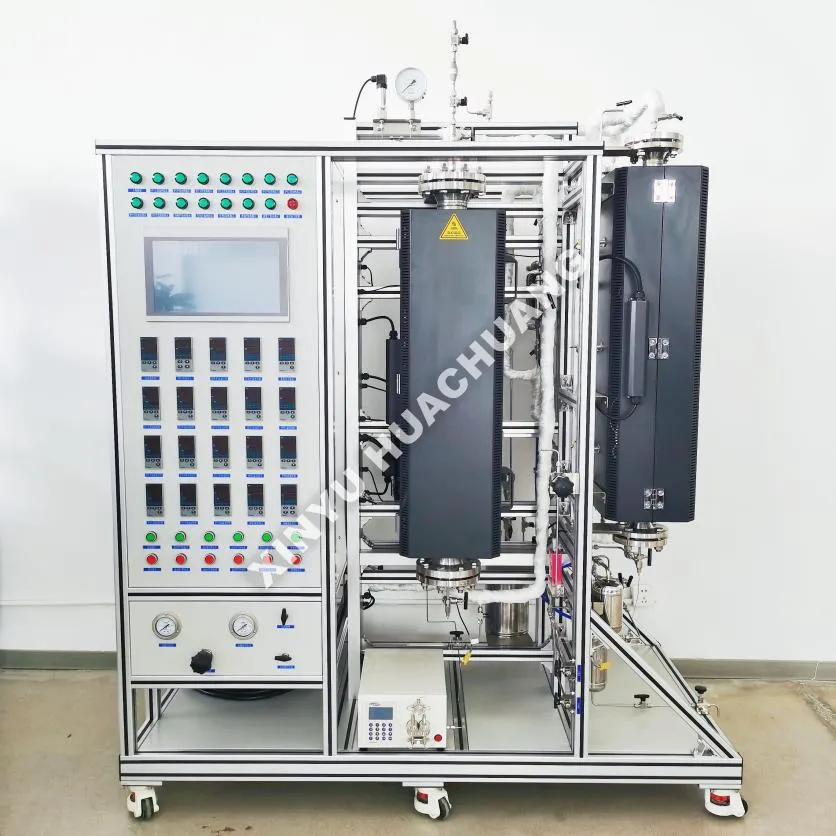

Gasification Synthesis Experimental Unit

The XINYU HUACHUANG Gasification Synthesis Experimental Unit is a highly automated laboratory reactor system engineered for precise syngas generation and kinetic research. Designed to simulate industrial biomass and coal gasification processes, it accurately controls temperature, pressure, and gasifying agent ratios. Equipped with intelligent PLC automation and multi-level safety interlocks, this unit is ideal for catalyst screening, process optimization, and green energy research in petrochemical and environmental fields.

What is a Gasification Synthesis Experimental Unit?

A Gasification Synthesis Experimental Unit is a specialized chemical testing apparatus where solid or liquid feedstocks (such as biomass, coal, or waste) are converted into syngas (H2, CO, CH4) at elevated temperatures in a controlled atmosphere. Gasification Synthesis Experimental Unit precisely manages the thermochemical conversion process, providing highly reproducible data on carbon conversion rates, tar content, and syngas composition for industrial scale-up.

What are the distinctive advantages?

● High-Temperature Precision: Advanced multi-zone PID heating ensures uniform temperature distribution up to 1000℃, critical for endothermic gasification reactions.

● Versatile Feedstock Adaptability: Supports various gasifying agents (steam, O2, CO2, air) and feedstocks including biomass, coal, and municipal solid waste.

● Intelligent Automation: PLC-PC integrated control enables automated data logging, historical curve generation, and unattended long-term operation.

● Robust & Safe Design: Reactors are constructed from high-temperature, corrosion-resistant alloys (e.g., Inconel, SS316L), featuring multi-level safety interlocks for over-temperature and over-pressure protection.

● Modular Configuration: Flexible integration of preheaters, cyclone separators, condensers, and online analyzers (GC/MS) to meet specific experimental requirements.

Technical Specifications

Application Areas

● Biomass Gasification: R&D for converting agricultural and forestry waste into green syngas and biofuels.

● Coal Gasification: Catalyst screening and process optimization for coal-to-liquids (CTL) and coal-to-chemicals.

● Waste-to-Energy: Testing gasification processes for municipal solid waste (MSW) and plastic pyrolysis.

● Green Hydrogen Production: Studying syngas water-gas shift reactions for high-purity hydrogen generation.

● Academic Research: Fundamental kinetic studies, tar cracking mechanisms, and catalyst deactivation.

Production Process

1. Requirement Confirmation: Understand the client's specific gasification testing needs, feedstock types, and operating parameters to customize the technical proposal.

2. Design & Engineering: Finalize CAD drawings, P&ID diagrams, and electrical schematics for the gasification system.

3. Precision Manufacturing: CNC machining of high-temperature reactor components, assembly of the gas feeding manifold, and fabrication of the PLC control cabinet.

4. Factory Testing: Strict pressure testing, temperature uniformity calibration, and PLC logic debugging.

5. Packaging & Shipping: Export-standard fumigation-free wooden crate packaging with secure internal fixation for global logistics.

6. Installation & Support: Provide comprehensive English manuals, video installation guides, and free online technical support for seamless operation.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: How does this lab-scale Gasification Synthesis Experimental Unit handle tar condensation to prevent pipeline blockages?

A: Tar plugging is a common issue in small-scale gasification testing. Our unit features a specialized, multi-stage gas conditioning module. The high-temperature syngas first passes through a high-temperature cyclone to remove solid ash, then enters a precisely controlled multi-stage condensation system. This design efficiently separates heavy tars and aqueous byproducts at different temperature gradients, preventing downstream pipeline blockages and ensuring continuous, unattended testing.

Q2: Can this bench-scale unit simulate different gasification atmospheres for catalyst or feedstock screening?

A: Yes, flexibility is the core advantage of this experimental unit. It is equipped with independent, high-precision Mass Flow Controllers (MFCs) for various gasifying agents (air, O₂, CO₂, and steam). Researchers can seamlessly switch between air-blown, oxygen-blown, or steam-gasification processes and precisely adjust the equivalence ratio (ER) to evaluate syngas quality and cold gas efficiency under varying conditions.

Q3: How does the system maintain stable reaction temperatures given the small heat capacity of bench-scale reactors?

A: Small-scale reactors are highly sensitive to endothermic/exothermic shifts. Our unit utilizes a multi-zone programmable electric heating furnace with advanced PID adaptive control. Multiple thermocouples are strategically placed along the reactor to monitor the temperature profile in real-time. The Industrial PLC dynamically adjusts the heating power to instantly compensate for heat fluctuations, ensuring highly accurate kinetic data.

Q4: What specific safety mechanisms are in place to handle syngas risks in a laboratory environment?

A: Safety is paramount for lab and pilot-scale equipment. The unit features a comprehensive safety matrix. Before ignition, the system performs an automatic nitrogen purging sequence to eliminate oxygen. During operation, if a temperature runaway or flow failure is detected, the PLC instantly triggers an Emergency Shutdown (ESD), automatically cutting off the feedstock, opening nitrogen purging valves to inert the reactor, and activating safe exhaust venting.
