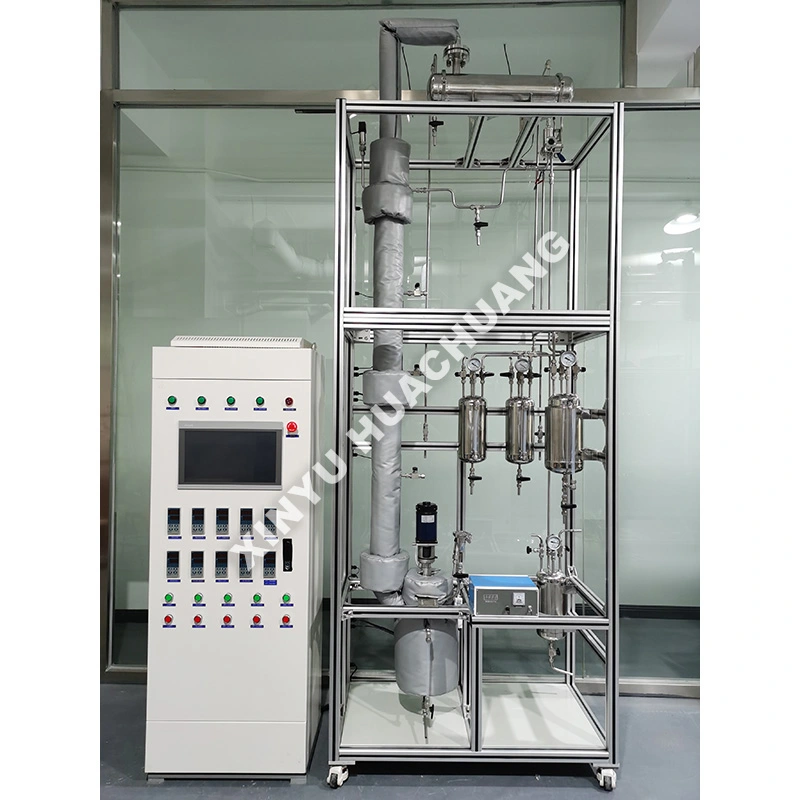

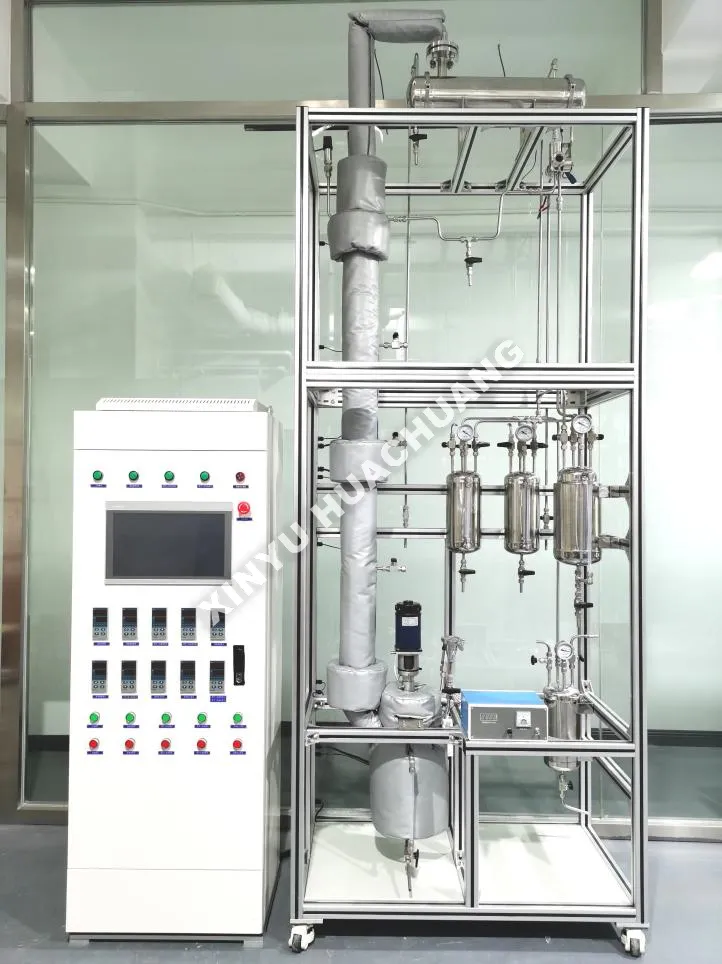

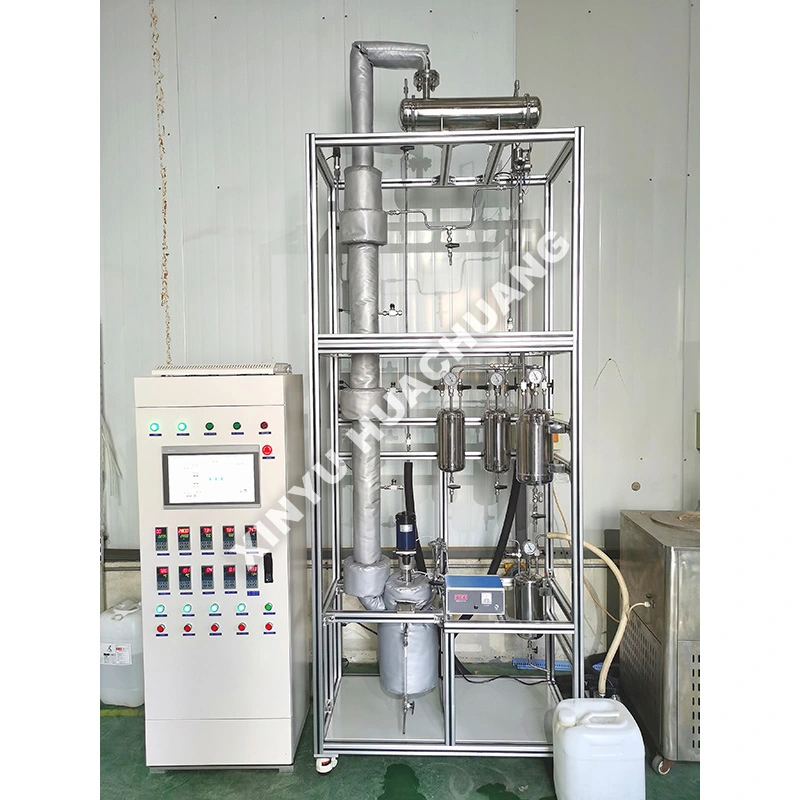

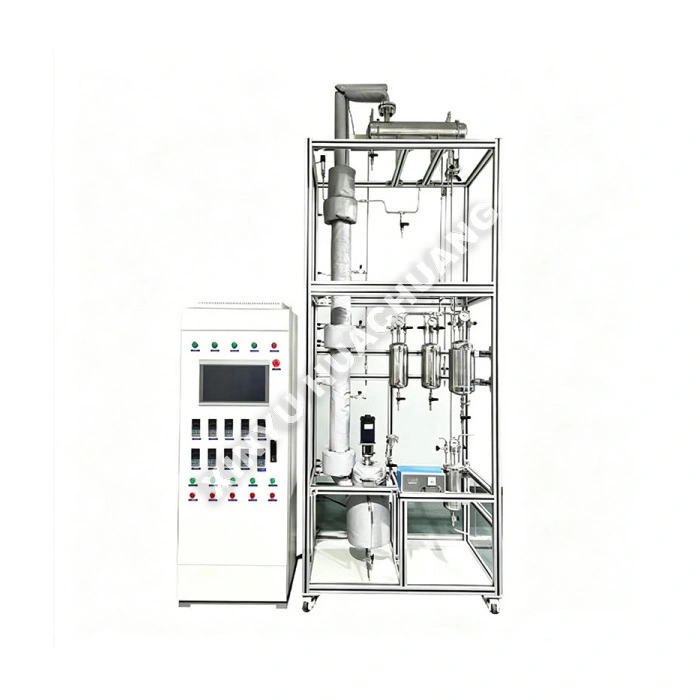

Magnetic Stirring Batch Distillation Unit

The XINYU HUACHUANG Magnetic Stirring Batch Distillation Unit is an advanced laboratory and pilot-scale separation system specifically engineered for heat-sensitive and high-viscosity liquid purification. Designed to eliminate the risks of bumping and localized overheating, this unit integrates a robust magnetic stirring mechanism directly into the distillation flask. Equipped with precise temperature control, adjustable reflux ratios, and intelligent PLC automation, the Magnetic Stirring Batch Distillation Unit ensures highly efficient, safe, and reproducible separation processes for fine chemicals and pharmaceutical intermediates.

Working Principle

Magnetic Stirring Batch Distillation Unit operates on the principle of batch fractional distillation combined with dynamic magnetic stirring. The liquid mixture is heated in the reactor, and the vapor travels up the fractionating column for repeated condensation and revaporization to achieve high-purity separation. Crucially, the integrated magnetic stirring system continuously agitates the boiling liquid, providing constant nucleation sites for vapor bubbles. This dynamic agitation completely eliminates the need for boiling chips or capillary tubes, preventing localized superheating and ensuring a smooth, bump-free boiling process. The entire operation is meticulously managed by the Magnetic Stirring Batch Distillation Unit to maintain precise thermal uniformity and optimal separation efficiency.

What are the distinctive advantages?

● Bump-Free Boiling: The continuous magnetic stirring action provides uniform heat distribution and constant bubble nucleation, completely preventing dangerous bumping during vacuum or atmospheric distillation.

● Thermal Uniformity: Eliminates hot spots at the bottom of the reactor, making it highly suitable for processing heat-sensitive materials, polymers, and high-viscosity liquids.

● Sealed & Leak-Free: The non-contact magnetic drive eliminates the need for mechanical seals or stirrer shafts penetrating the reactor lid, ensuring a perfectly sealed system for vacuum operations.

● Intelligent PLC Automation: Centralized control system enables unattended long-term operation, automated reflux ratio adjustment, and real-time data logging for temperature and stirring speed.

● Easy Maintenance: The absence of mechanical seal wear parts and the smooth internal design make cleaning and sterilization between different batches incredibly simple and fast.

Technical Specifications

Where does it apply?

● Pharmaceuticals & Fine Chemicals: Purification of heat-sensitive active pharmaceutical ingredients (APIs) and high-value intermediates.

● Polymer & Resin Processing: Solvent recovery and monomer purification for high-viscosity materials like polyols, epoxy resins, and polyurethane.

● Essential Oils & Extracts: Gentle distillation of natural fragrances, terpenes, and plant extracts to preserve delicate active compounds.

● Academic & R&D Laboratories: Kinetic studies, fractional distillation research, and small-batch solvent recovery.

● Food & Beverage: Concentration of fruit juices, alcohol purification, and flavor essence extraction.

Usage Precautions

● Stirring Before Heating: Always initiate the magnetic stirring process before turning on the heating system to ensure uniform heat distribution and prevent localized superheating.

● Magnet Protection: Avoid exceeding the maximum temperature rating of the magnetic stirrer (typically 300℃ for standard PTFE-coated bars) to prevent demagnetization and loss of stirring torque.

● Vacuum Safety: When operating under deep vacuum, ensure the reactor is specifically rated for negative pressure and use a protective mesh or shield to prevent implosion hazards.

● Gradual Heating: Utilize the PLC's programmable heating ramp rates to avoid sudden vaporization, especially when processing volatile solvents.

Maintenance Guide

● Daily: Inspect the magnetic stirring bar for any signs of PTFE coating degradation or chipping. Check the heating medium level (if using oil/water bath) and verify all electrical connections.

● Weekly/Monthly: Clean the reactor interior and the fractionating column to prevent residue buildup. Inspect the magnetic coupling area for any dust or chemical spills that could affect magnetic transmission.

● Quarterly: Calibrate temperature sensors and verify the accuracy of the PLC control system. Check the integrity of all vacuum seals, O-rings, and gaskets, replacing them if signs of wear are detected.

● Post-Operation: Always purge the system with an inert gas (N2) and allow it to cool to room temperature with stirring active before disassembling the unit for cleaning.

After-Sales Service & Support

At XINYU HUACHUANG, we are committed to providing comprehensive and reliable after-sales support to ensure the continuous and efficient operation of your equipment. Our dedicated service team is always ready to assist you.

Comprehensive Warranty Coverage

We proudly offer a two-year warranty for our equipment. During this period, we provide free maintenance and repair services for any quality-related issues, excluding those caused by improper operation, unauthorized modifications, or force majeure. For equipment beyond the two-year warranty period, we continue to offer lifelong maintenance services, charging only the cost of replacement parts and labor.

Rapid Response Mechanism

We offer 7×24 hours professional engineering telephone support. Upon receiving a fault notification, our technical team will respond within 24 hours and provide a viable solution. If on-site service is required, our professional engineers will arrive at your facility within one week. In special circumstances where the equipment cannot be repaired, we will unconditionally replace it with a new unit or provide a substitute unit during the two-year warranty period, or take necessary measures to restore normal operation.

Frequently Asked Questions (FAQ)

Q1: Why does this distillation unit use magnetic stirring?

A: The integrated magnetic stirring system continuously agitates the boiling liquid and provides constant nucleation sites for vapor bubbles. This prevents localized superheating and ensures a smooth, bump-free boiling process.

Q2: What is bumping, and how does this unit prevent it?

A: Bumping happens when superheated liquid erupts violently, disrupting distillation and risking sample loss. The dynamic magnetic agitation keeps creating nucleation sites, so boiling stays gentle and stable throughout the run.

Q3: Do we still need boiling chips or capillary tubes with this unit?

A: No. The magnetic stirring completely eliminates the need for boiling chips or capillary tubes, saving consumables and avoiding contamination of your batch.

Q4: How does the stirring affect thermal uniformity and separation efficiency?

A: Continuous agitation keeps the liquid temperature even, and the whole operation is meticulously managed to maintain precise thermal uniformity and optimal separation efficiency as vapor undergoes repeated condensation and revaporization in the column.

Q5: Which mixtures benefit most from magnetic stirring during distillation?

A: Mixtures prone to localized superheating or bumping benefit the most. The constant agitation makes the entire distillation smoother, safer, and more reproducible.
